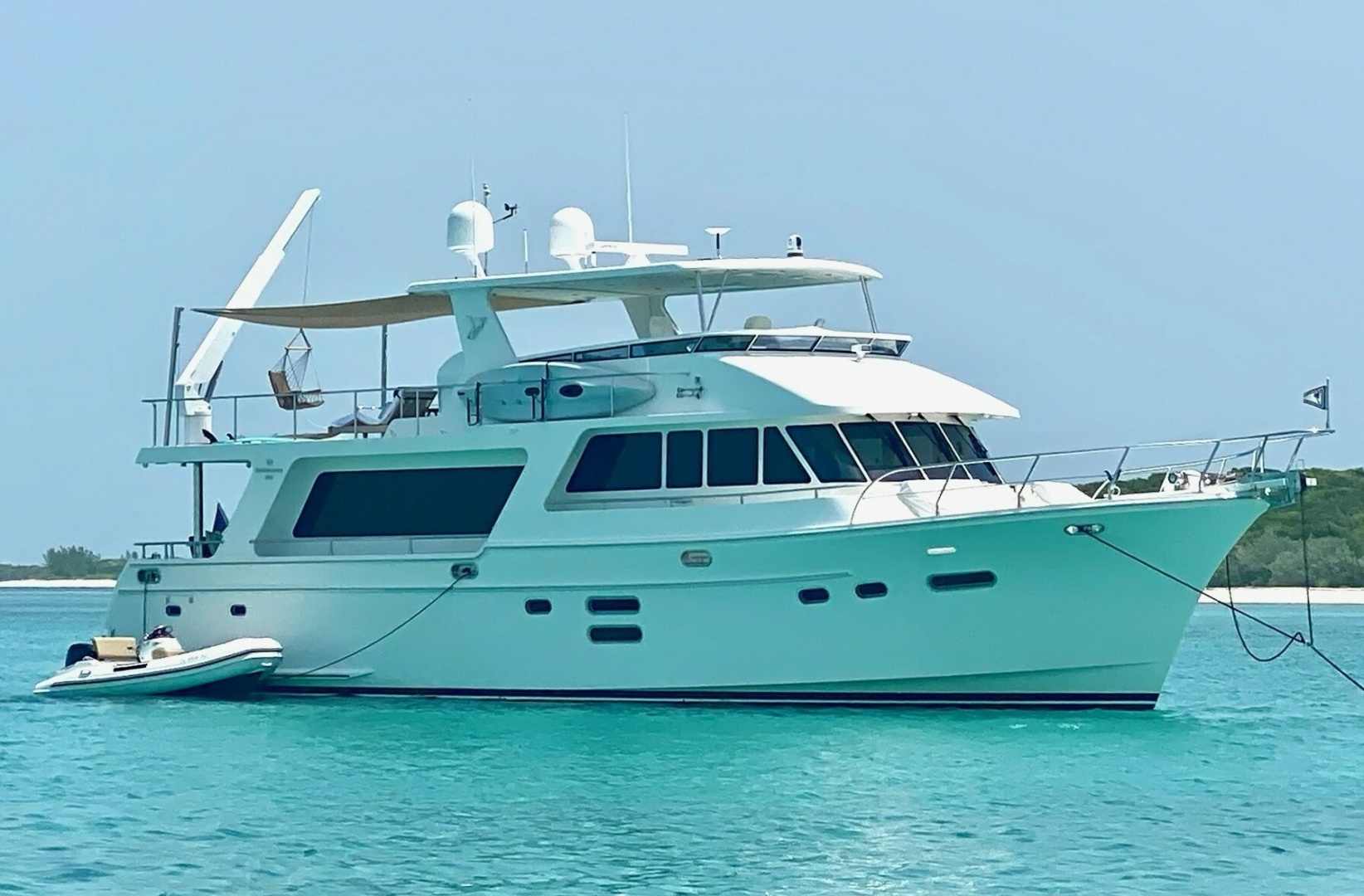

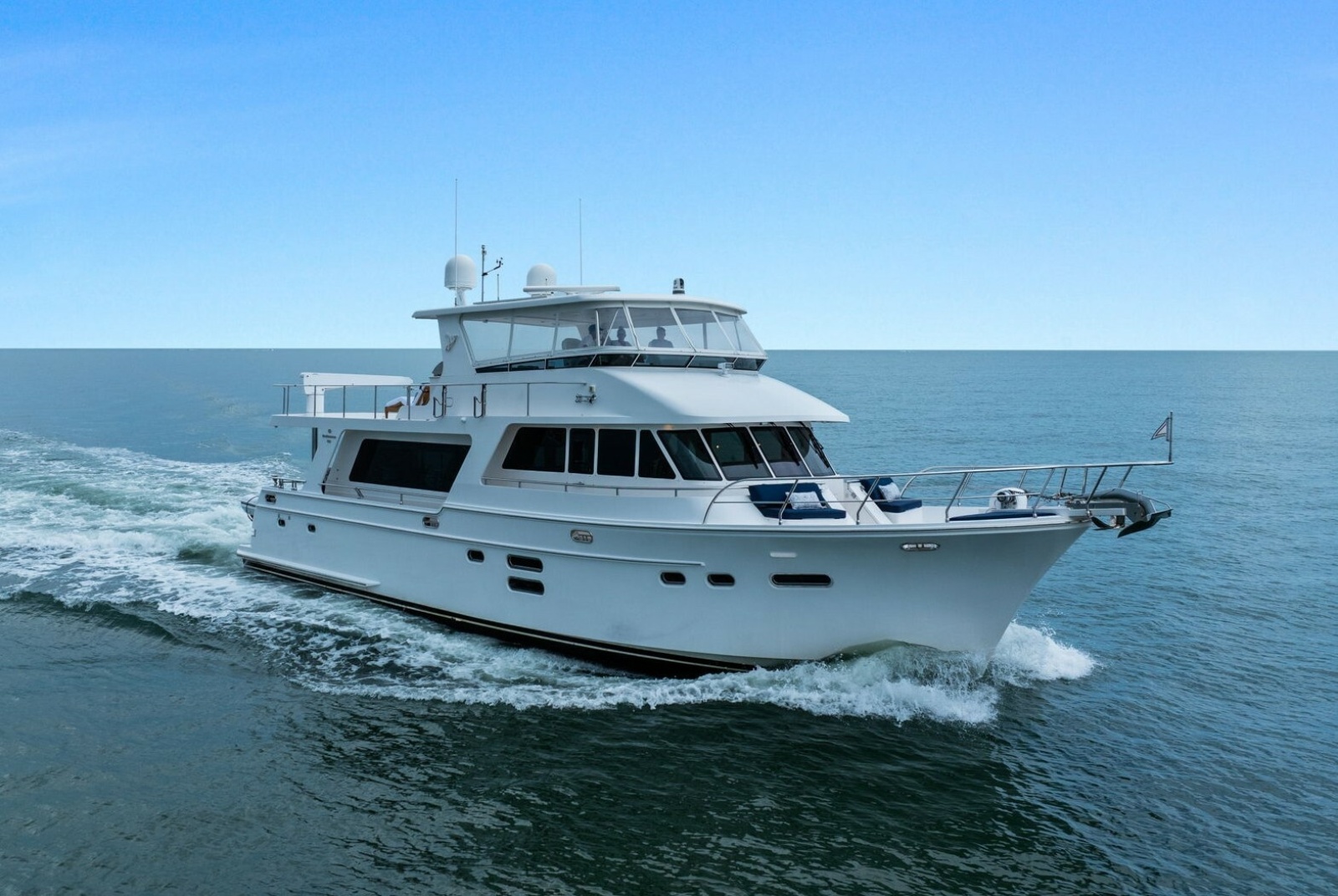

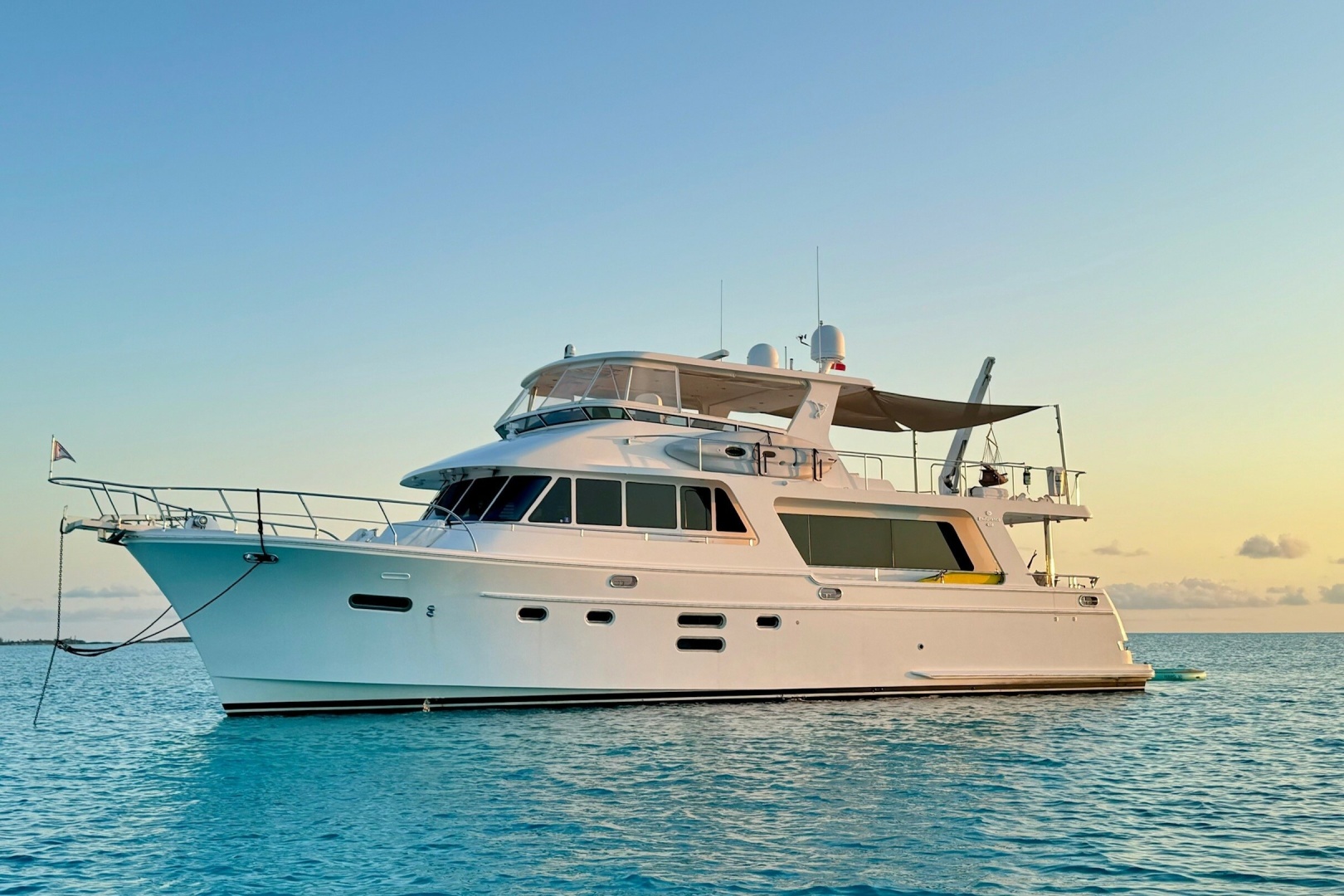

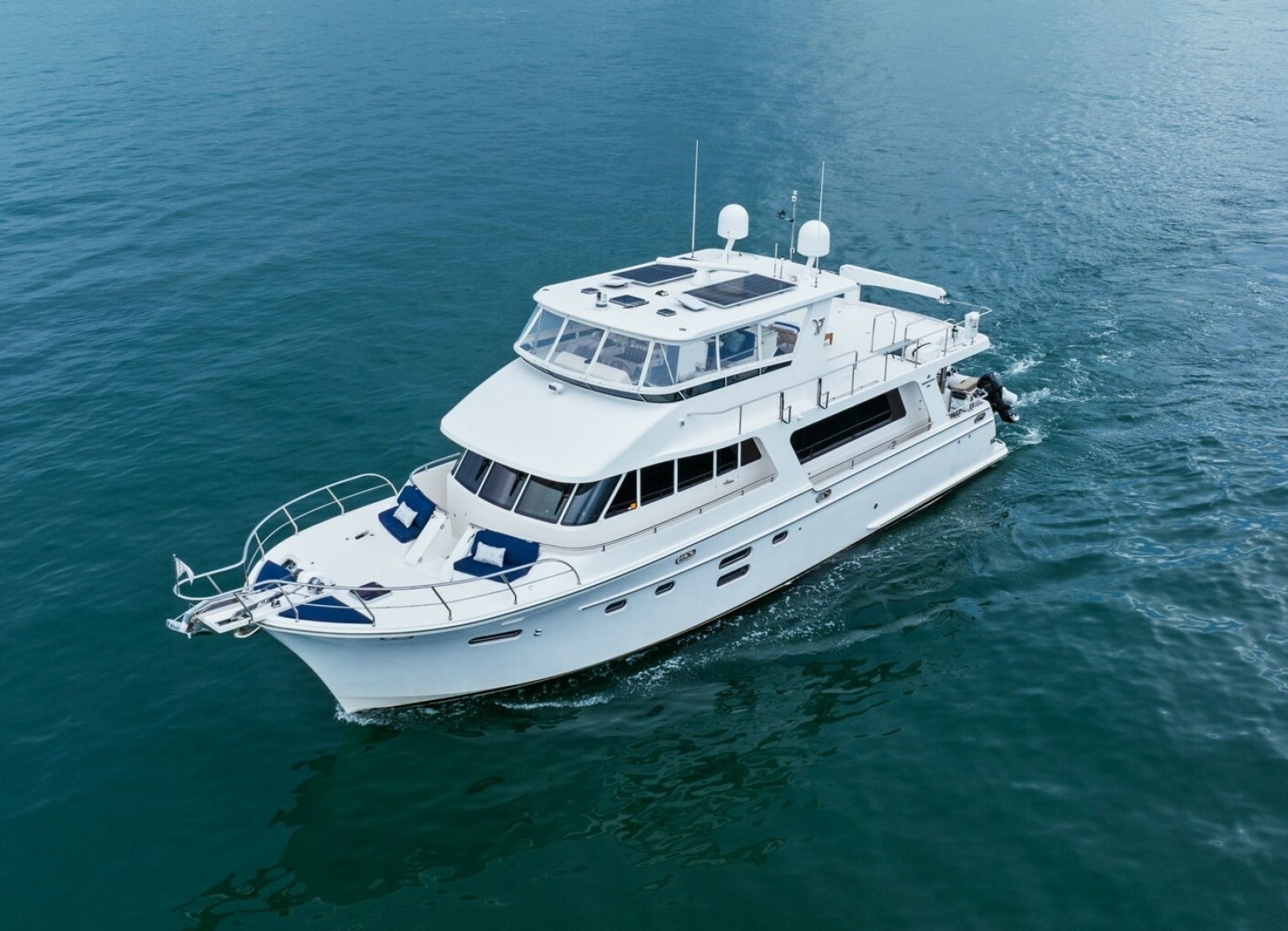

2015 Hampton Endurance 658 65'

VIZCAYA — Long-Range Luxury, Engineered for Independence

VIZCAYA is an exceptionally upgraded 2015 Hampton Endurance 658 developed around a

clear philosophy: go farther, stay longer, and depend less on shore-based

infrastructure.

Built on Hampton's proven long-range Endurance platform, VIZCAYA has been extensively

evolved through an owner-directed program focused on redundancy, self-sufficiency,

maintainability, communications, monitoring, and uncompromising luxury.

Her capabilities go well beyond those of a conventionally equipped cruising yacht. Dual

generators, dual watermakers, redundant freshwater and air-conditioning systems,

multiple charging and inverter systems, comprehensive fuel filtration, emergency bilge

pumping, redundant navigation and communications, satellite connectivity, remote vessel

monitoring, and substantial solar-assisted energy infrastructure are complemented by

exceptional interior finishes, upgraded quartz and heated stone surfaces, Loro Piana

treatments, cedar-lined storage, Italian fixtures and hardware, sophisticated lighting, and

refined indoor/outdoor living spaces.

The result is a yacht engineered to remain capable far from shore while delivering the

comfort, refinement, and luxury expected aboard a truly exceptional motor yacht—even

when individual systems require service.

Why Vizcaya

VIZCAYA is not simply a well-equipped Hampton Endurance 658. She is a deeply evolved

luxurious, long-range motor yacht in which the original platform has been thoughtfully

developed around a single objective: maximum independence, reliability, and owner

confidence far from shore-based support.

• Long-Range Capability & Efficiency — The proven Endurance platform, 1,750-

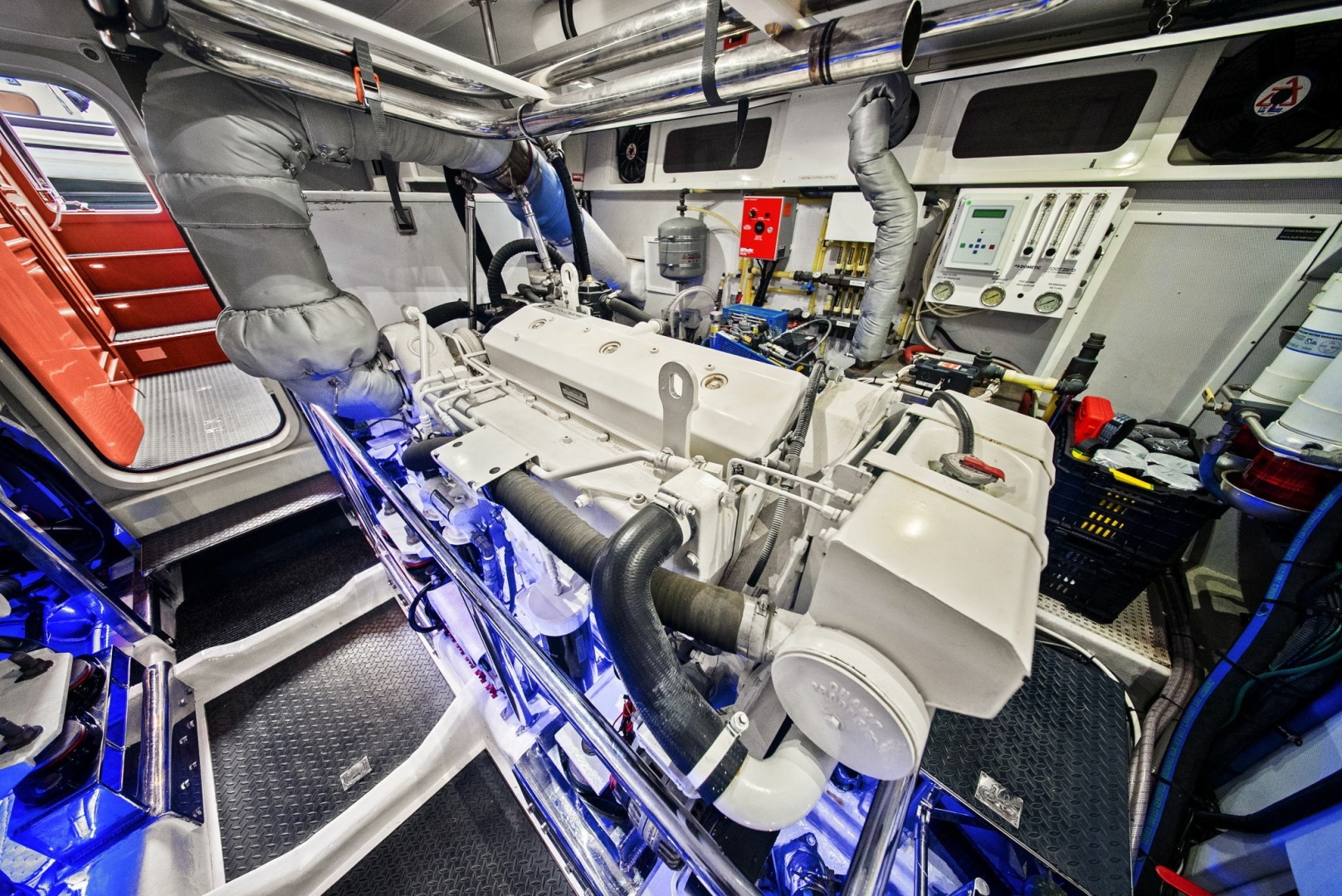

gallon fuel capacity, and purpose-selected twin John Deere 13.5L 750 HP diesels

deliver an efficient, dependable propulsion package designed to maximize range,

endurance, and cruising flexibility.

• Engineered Redundancy — Critical cruising systems incorporate independent

backup capability, designed to reduce dependence on any single component and

preserve operational capability when systems require service.

• Genuine Off-Grid Capability — Dual watermakers, 32 kW of generator capacity,

solar-assisted Victron energy architecture, substantial battery/inverter capability,

Starlink, satellite communications, and remote monitoring support extended

periods away from marina infrastructure.

• A True Exploration Platform — VIZCAYA's custom 12'6" Nautica Widebody RIB with

60 HP Yamaha is far more than a tender. With Garmin navigation, custom helm

controls, premium seating, sunshade, underwater lighting, Bluetooth audio,

dedicated chocks w/integrated deck mounting system, auxiliary fuel capacity, and a

1,600-lb Brower powered davit launches from either the stern or starboard side,

complemented by a transom Freedom Lift for convenient water-level deployment—

giving owners the ability to leave the mothership behind and reach beaches,

islands, shallow anchorages, dive sites, and remote destinations that the yacht

itself cannot access.

• Luxury Without Compromise — Full-beam master, private VIP suite, flexible

guest/crew accommodations, premium finishes, upgraded quartz counter tops/

insets throughout the yacht, heated stone and Granite surfaces, cedar-lined

closets, Italian light fixtures and door hardware, sophisticated climate control, and

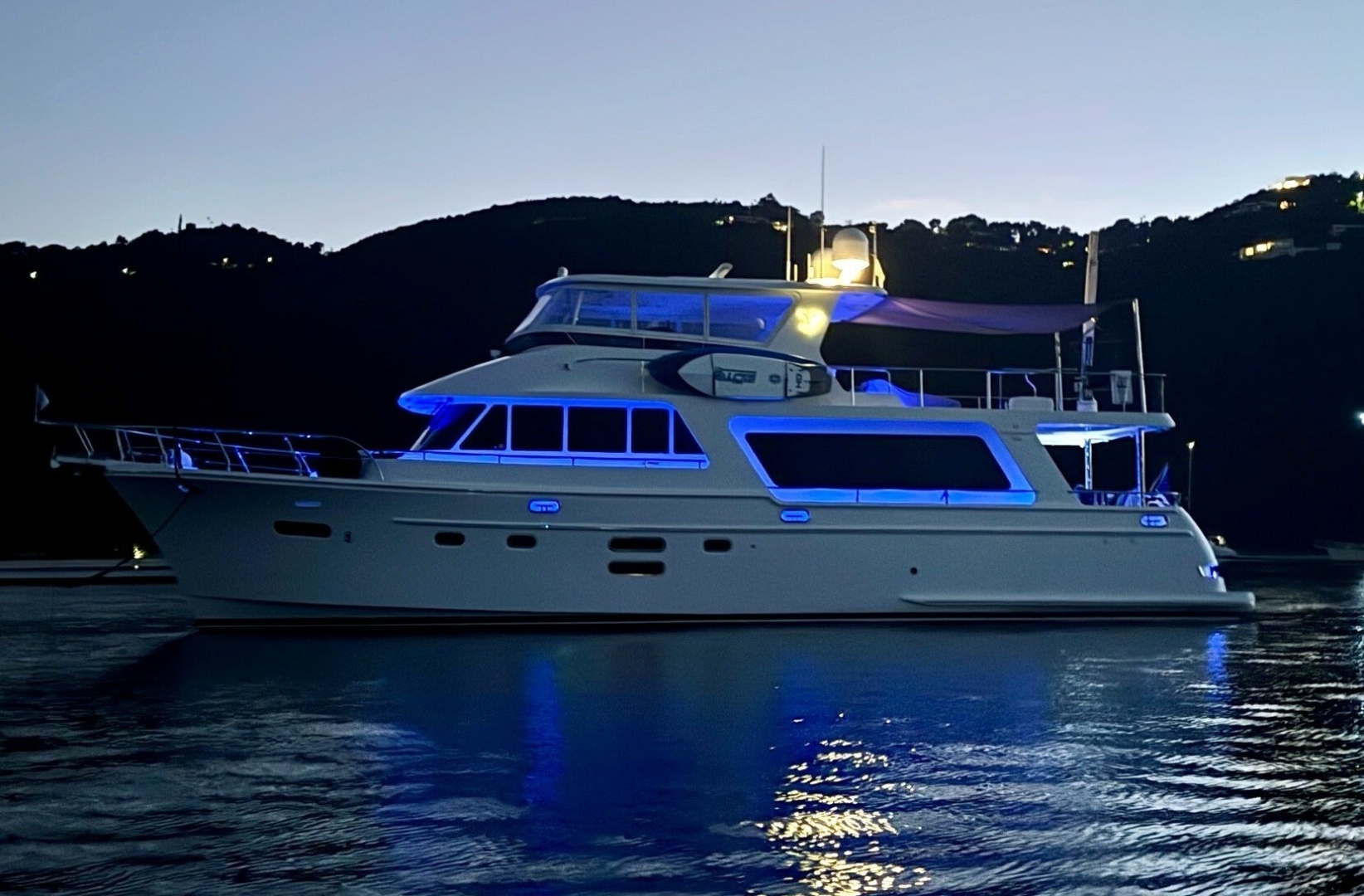

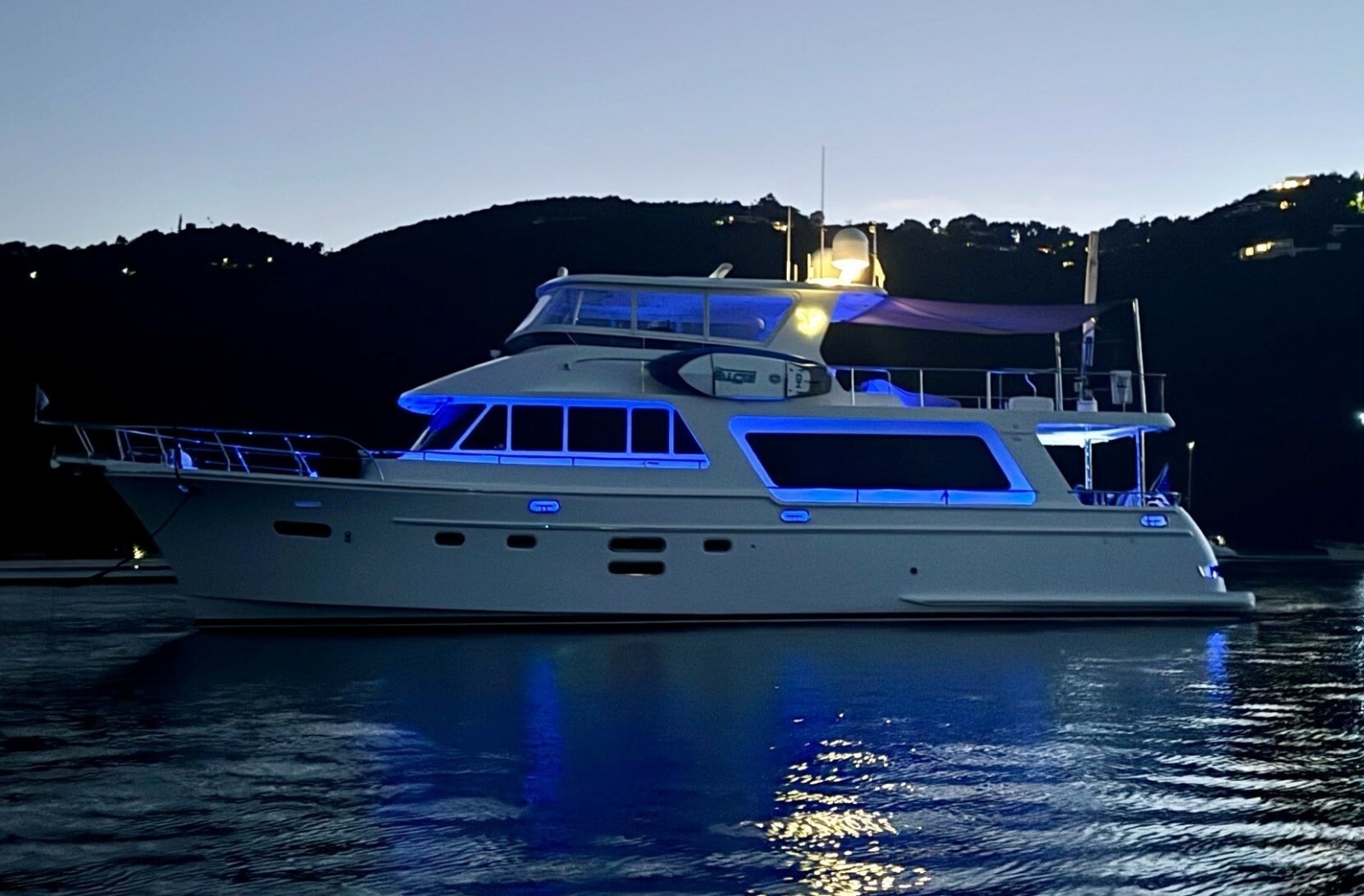

expansive indoor/outdoor living spaces. A custom multi-scene direct and indirect

LED lighting system with integrated indirect headliner illumination creates a refined,

layered ambiance throughout the interior and exterior of the yacht.

• Connected & Continuously Monitored — Starlink High Performance, satellite

communications, vessel tracking, security, energy monitoring, environmental

sensors, and remote vessel monitoring provide an unusually high level of

connectivity, awareness, and control wherever VIZCAYA cruises—and wherever you

are, even when you are away from the yacht.

• Exceptional Ownership Documentation — A comprehensive vessel-specific

archive of maintenance records, upgrades, invoices, vendors, operating

information, equipment, and parts provides an uncommon operational advantage

for the next owner.

VIZCAYA represents the convergence of a proven long-range platform, extensive

modernization, genuine systems redundancy, off-grid capability, sophisticated

communications and monitoring, expedition-grade tender capability, luxury

accommodations, and unusually comprehensive documentation.

She was not equipped simply to go farther. She was developed to remain capable

when she gets there. That is what makes VIZCAYA exceptional.

WELCOME ABOARD

 A Hampton Built for the Way You Actually Cruise

From the moment you step aboard VIZCAYA, the difference is apparent. This is an

Endurance 658 that has been thoughtfully evolved beyond her original configuration, with

owner-directed upgrades selected not simply for convenience or appearance, but to

enhance reliability, independence, maintainability, cruising capability, and luxurious living

aboard.

The result is a yacht designed to take you farther and keep you comfortably there—

combining serious long-range capability and systems redundancy with refined interiors,

exceptional finishes, sophisticated technology, and expansive spaces designed for

effortless living and entertaining.

THE VIZCAYA DIFFERENCE

A Proven Long-Range Platform, Taken Further.

The Hampton Endurance 658 was designed from the outset as a serious long-range

cruising yacht. VIZCAYA builds upon that foundation with substantial owner-selected

improvements.

Her 1,750 gallons of fuel, 400 gallons of freshwater, robust semi-displacement hull, stand-

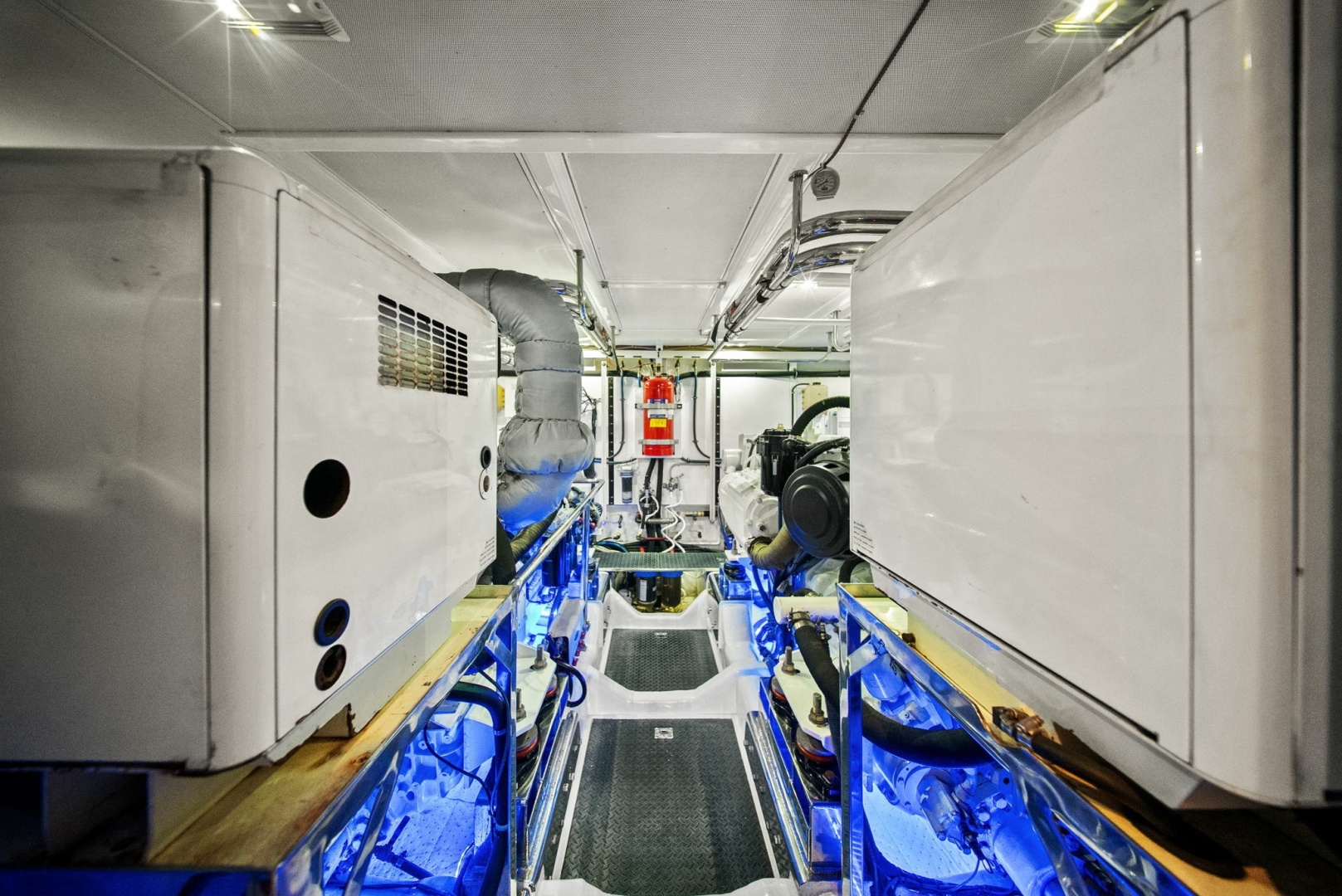

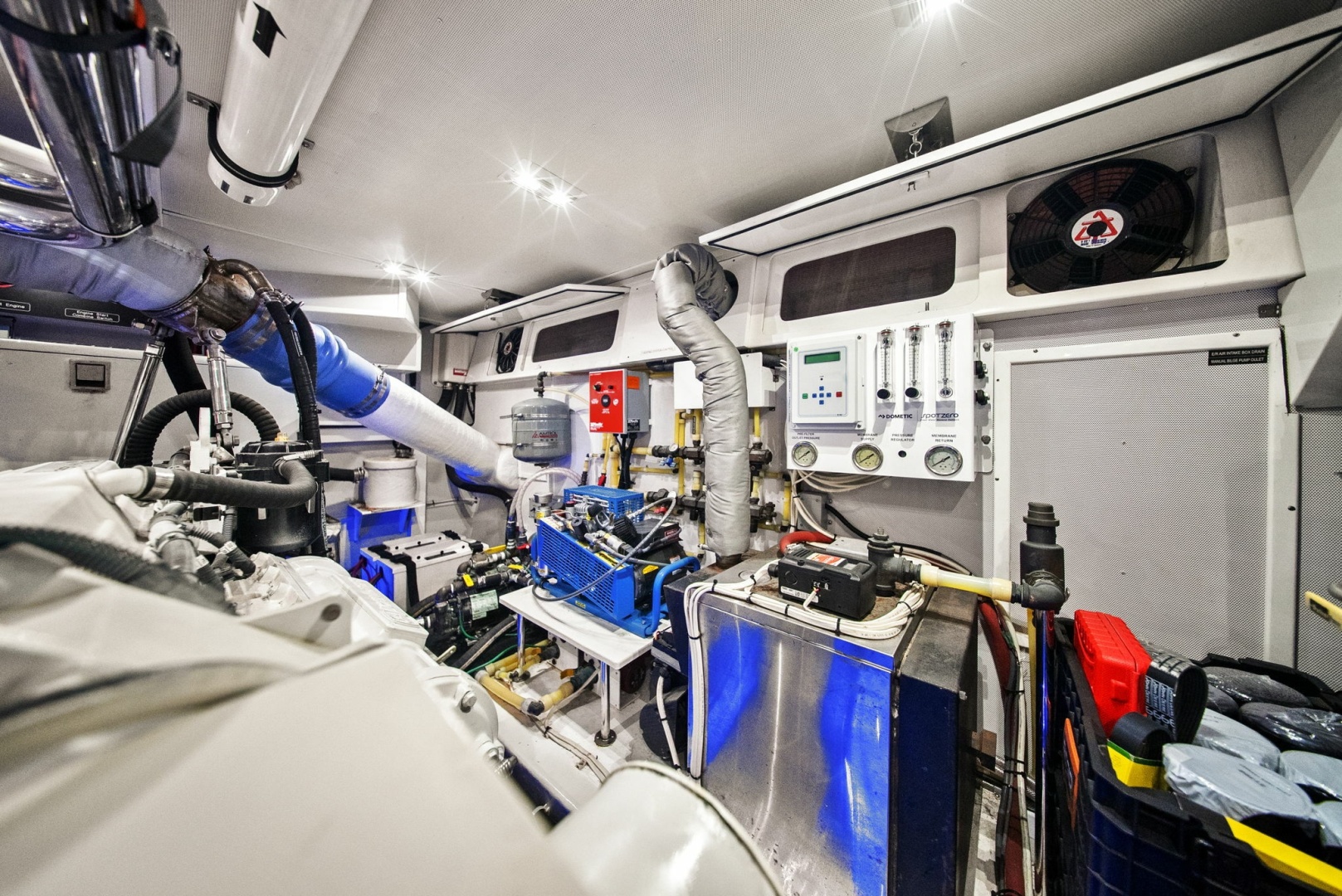

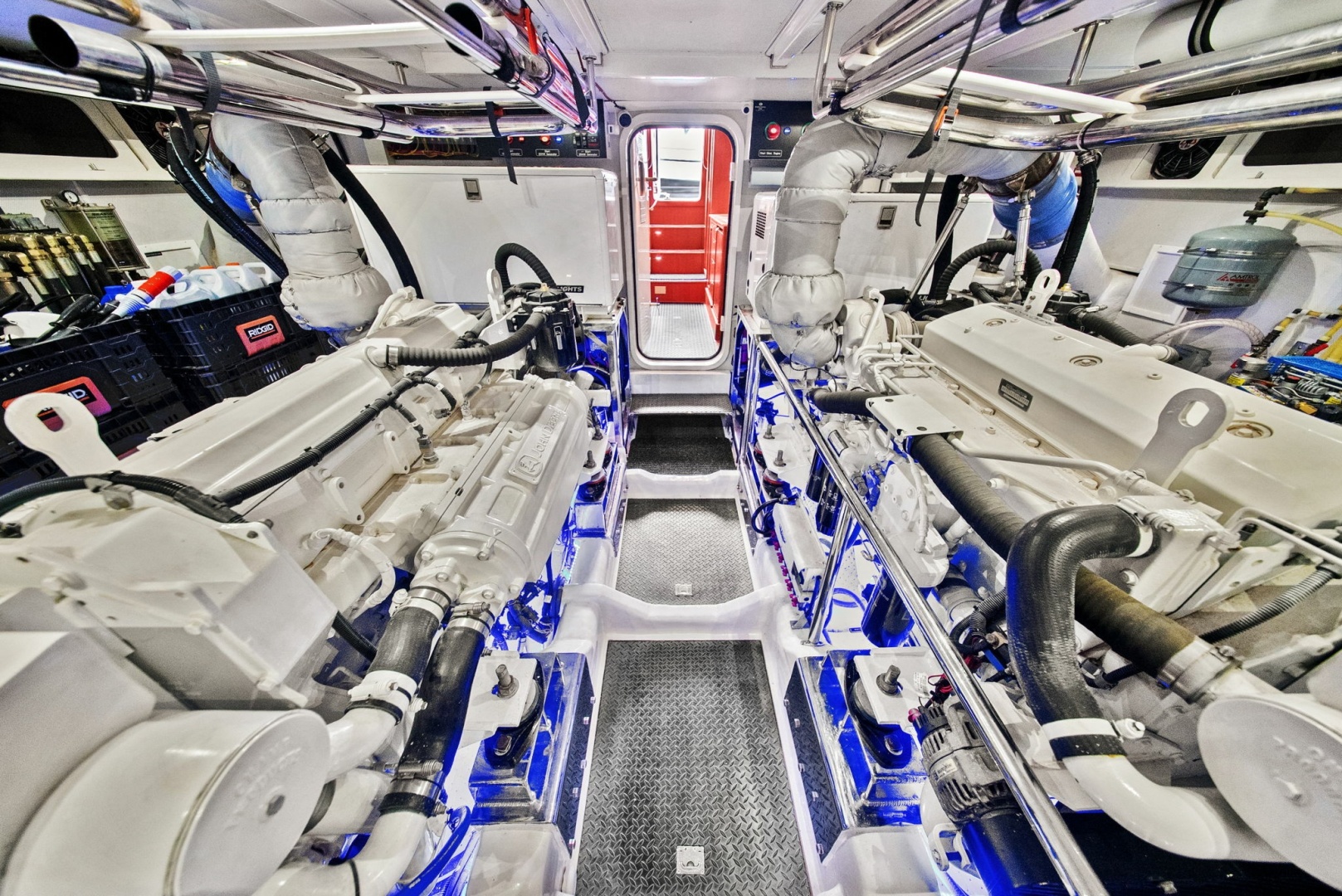

up engine room, efficient propulsion package, and extensive onboard systems provide the

platform for extended cruising.

The difference is how those systems have been developed and integrated.

Engineered for Independence

VIZCAYA's critical cruising systems were developed with the philosophy that a single

component failure should not automatically become a failed voyage.

• Comprehensive Redundancy & Independence: Dual generators and watermakers, redundant freshwater and A/C seawater pumps, plus multiple inverter/charging systems with engine-driven DC-DC charging and solar-assisted power.

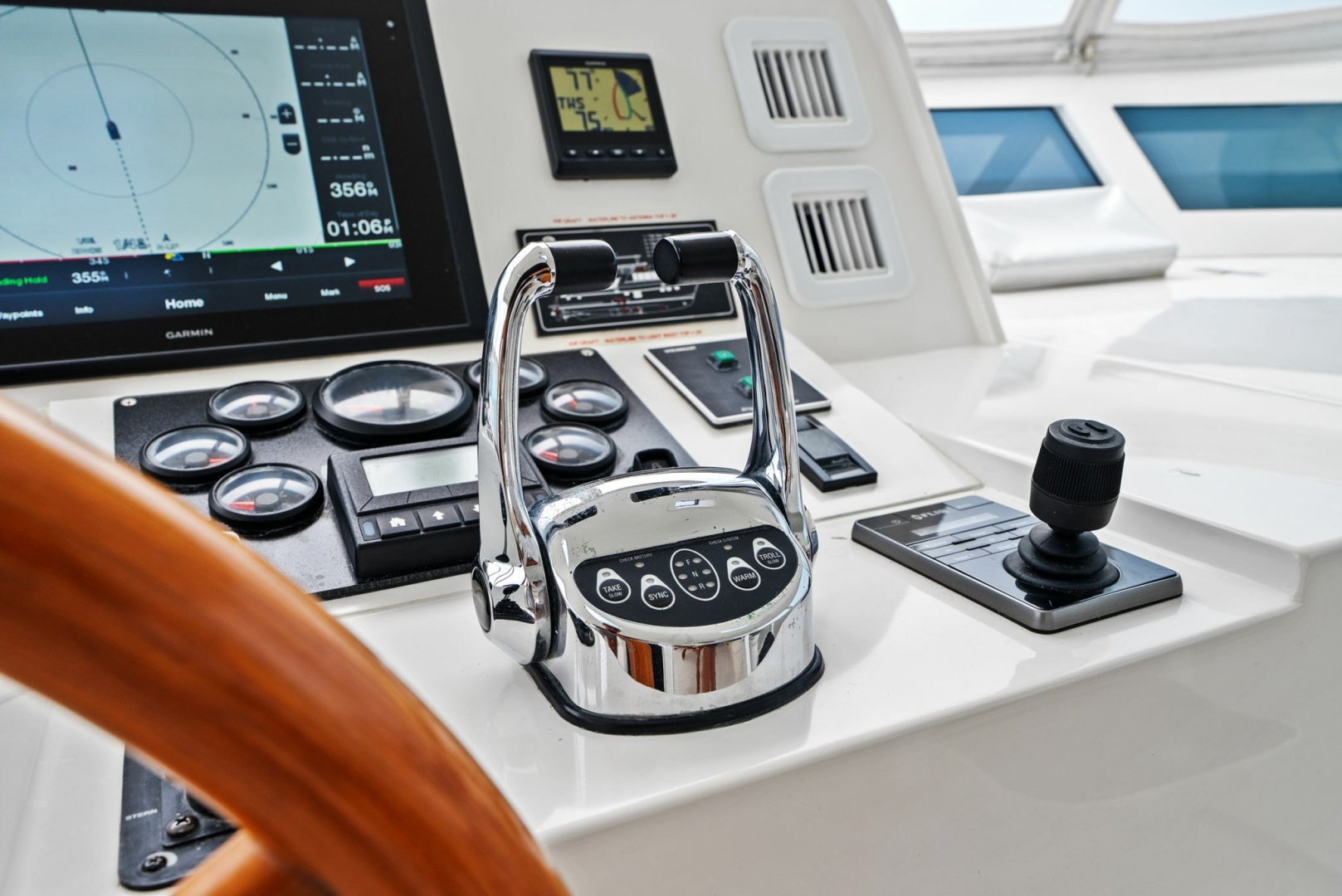

• Advanced Propulsion & Control: Dual Racor filtration, redundant engine/transmission controls, and multiple helm/control stations for enhanced operational reliability.

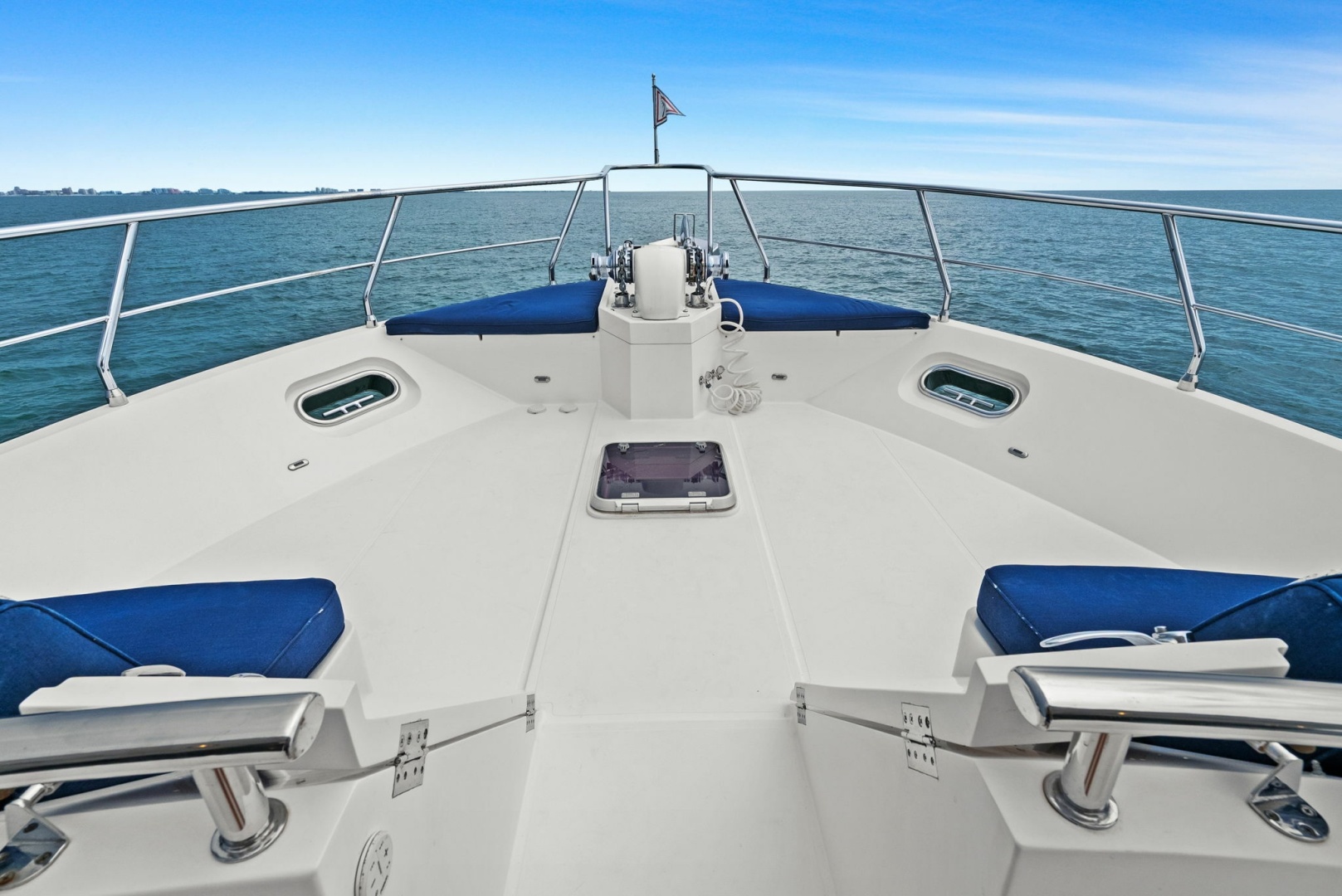

• Premium Ground Tackle: Dual anchors with swivels and 300' of chain for secure anchoring capability.

• Advanced Safety & Bilge Protection: Four automatic bilge pumps plus emergency engine-driven bilge pumping for multiple layers of water-management protection.

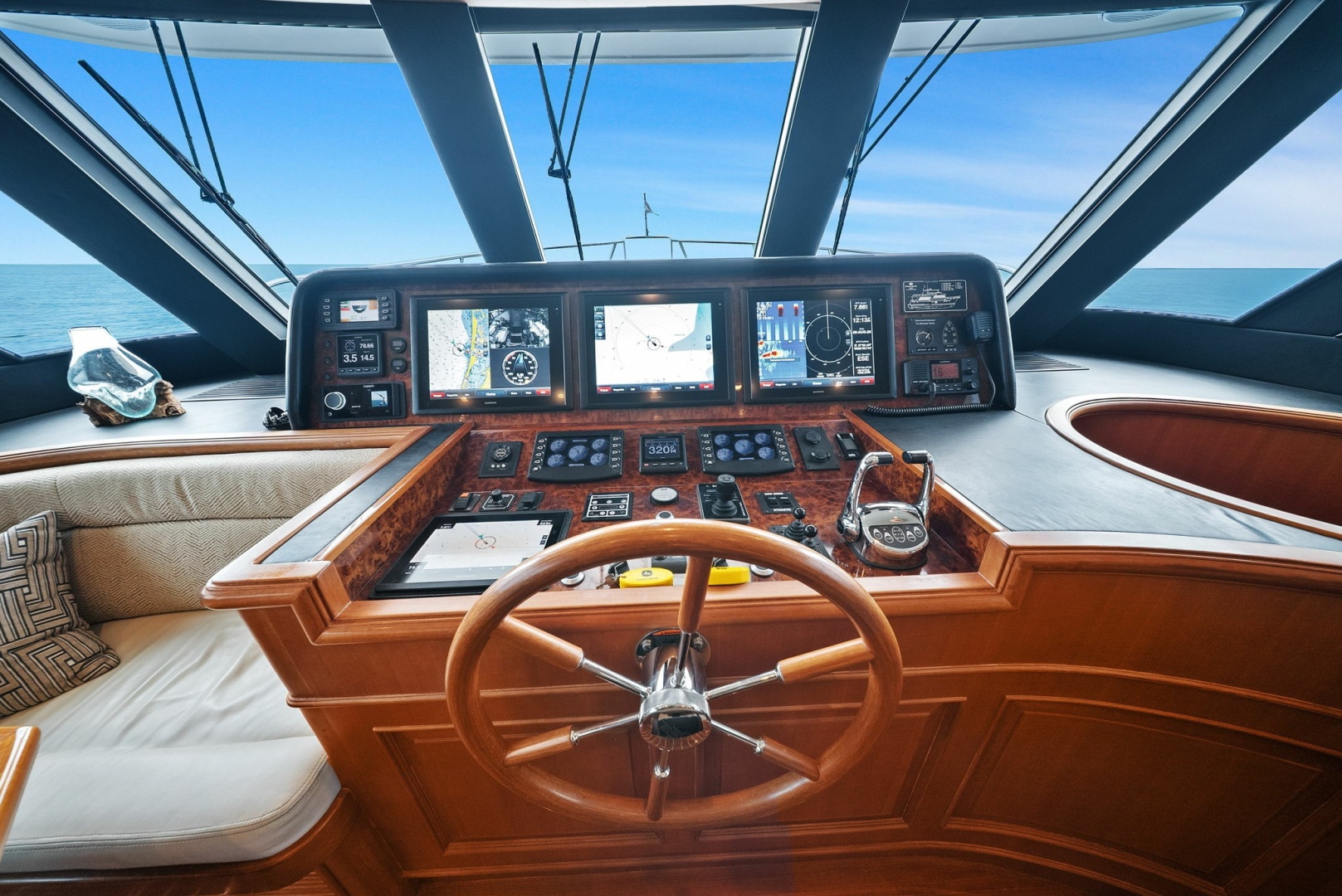

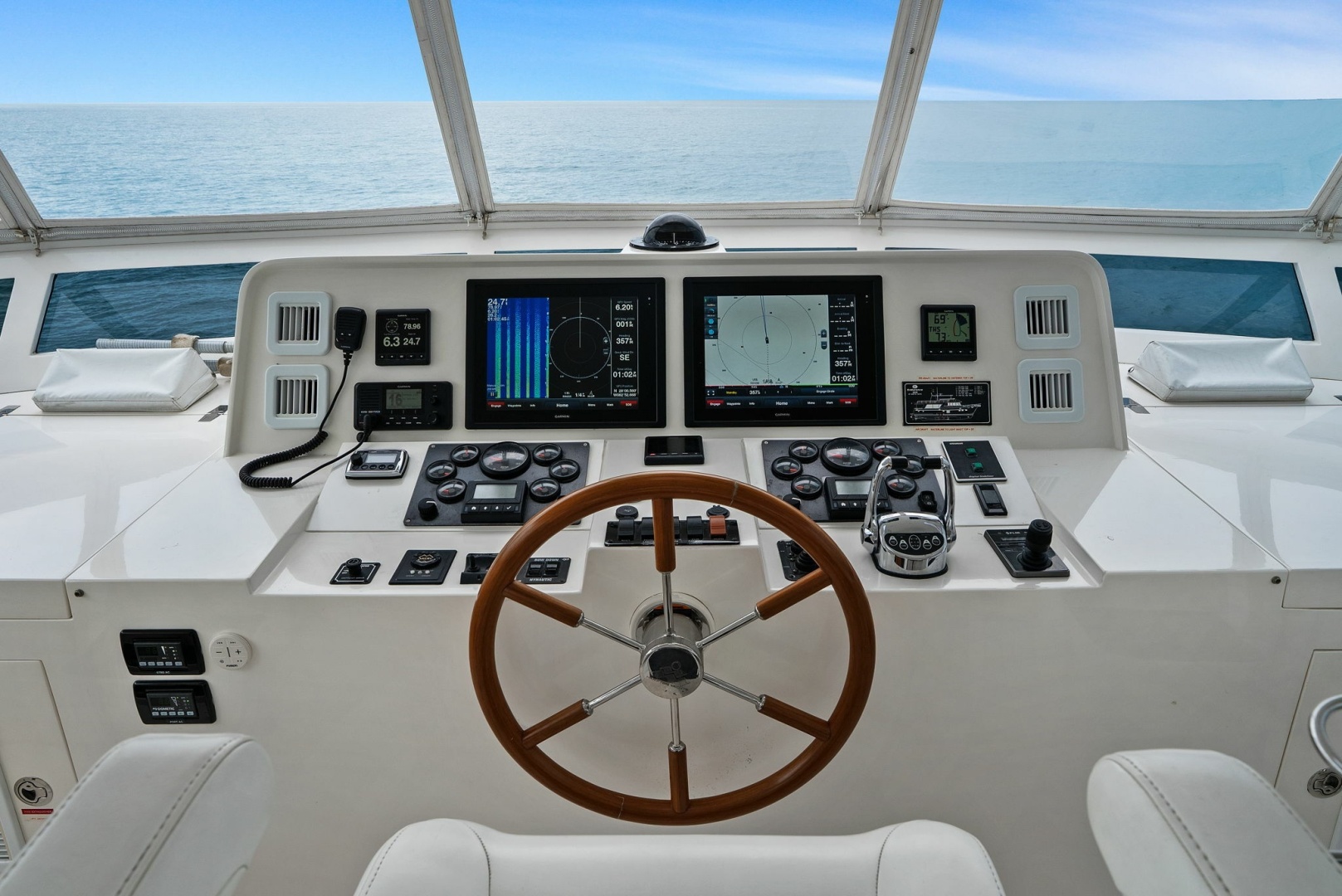

• Redundant Navigation & Connectivity: Redundant navigation and communications systems with integrated remote vessel monitoring and satellite tracking.

The philosophy is simple: one failed component should not have to become a failed

voyage.

Genuine Off-Grid Capability

VIZCAYA is exceptionally well suited to extended periods away from marinas and shore

infrastructure.

Her approximately 100 GPH combined watermaking capacity, 32 kW of generator capacity,

solar-assisted Victron energy architecture, substantial battery/inverter capability, satellite

communications, Starlink connectivity, cellular connectivity, and remote monitoring

systems provide a level of onboard independence rarely found aboard a yacht of this size.

A True Exploration Platform

VIZCAYA's custom tender and deployment system is designed to extend the yacht's reach

far beyond the mothership, transforming the tender from a means of transportation into a

genuine exploration platform.

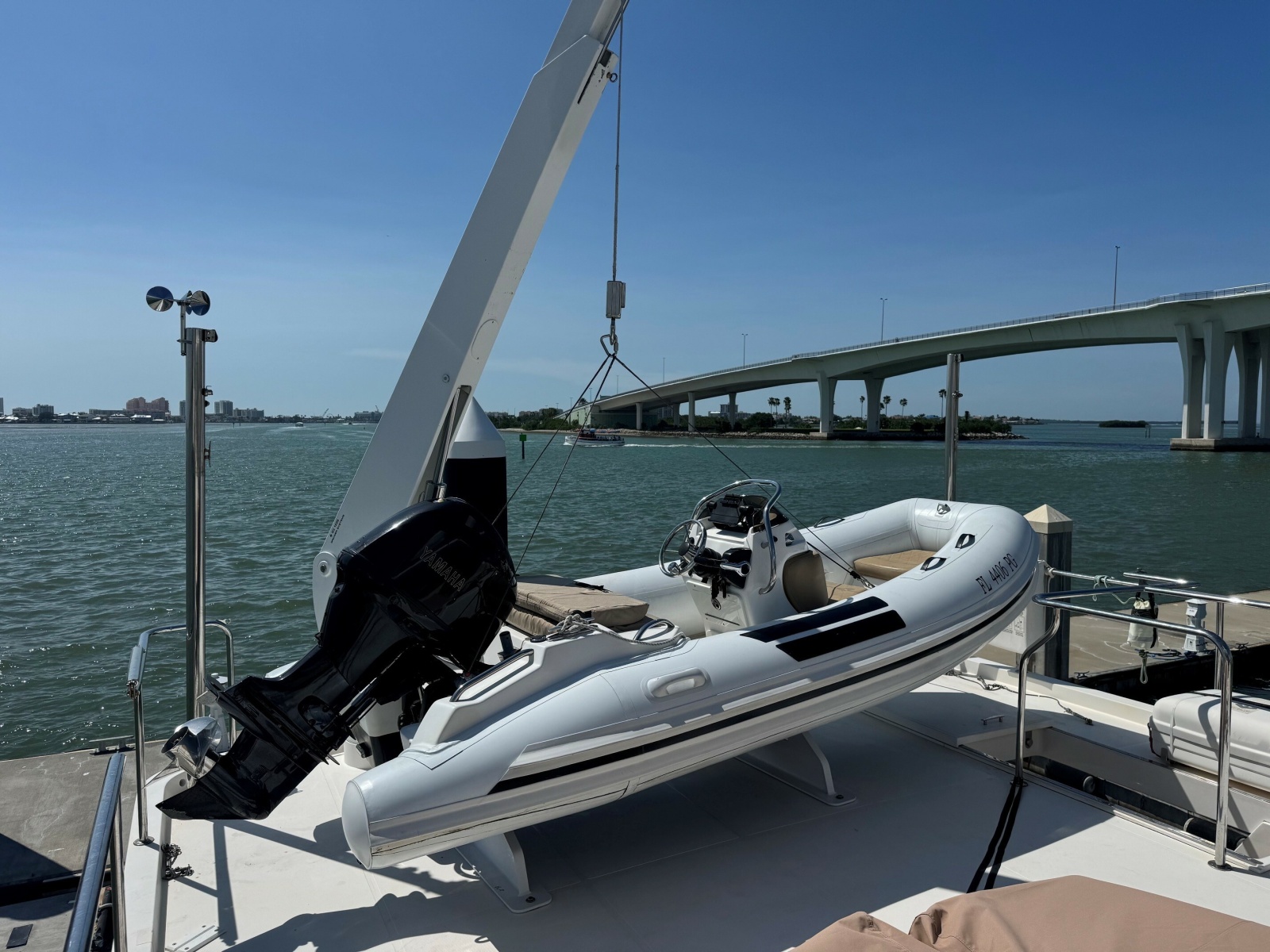

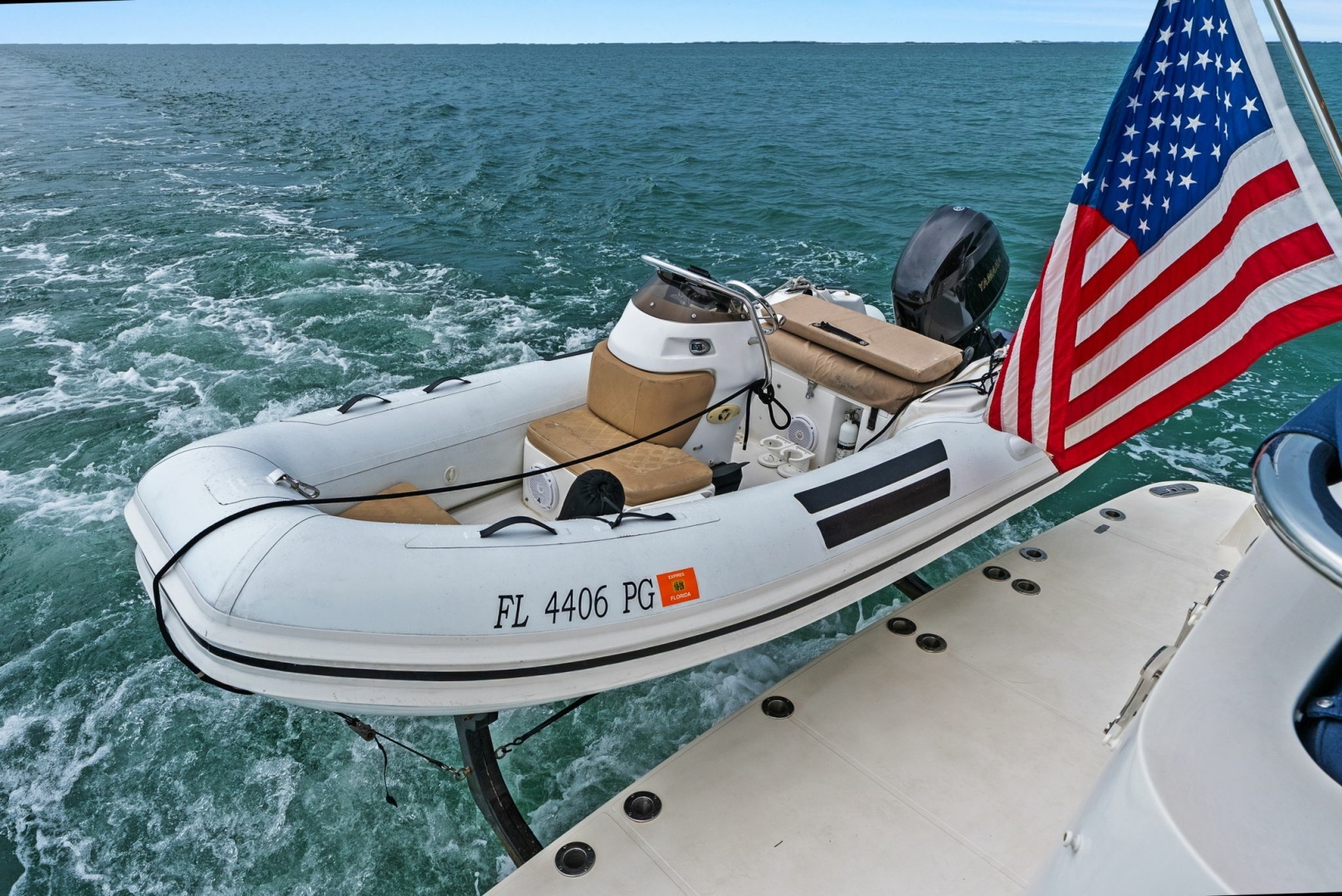

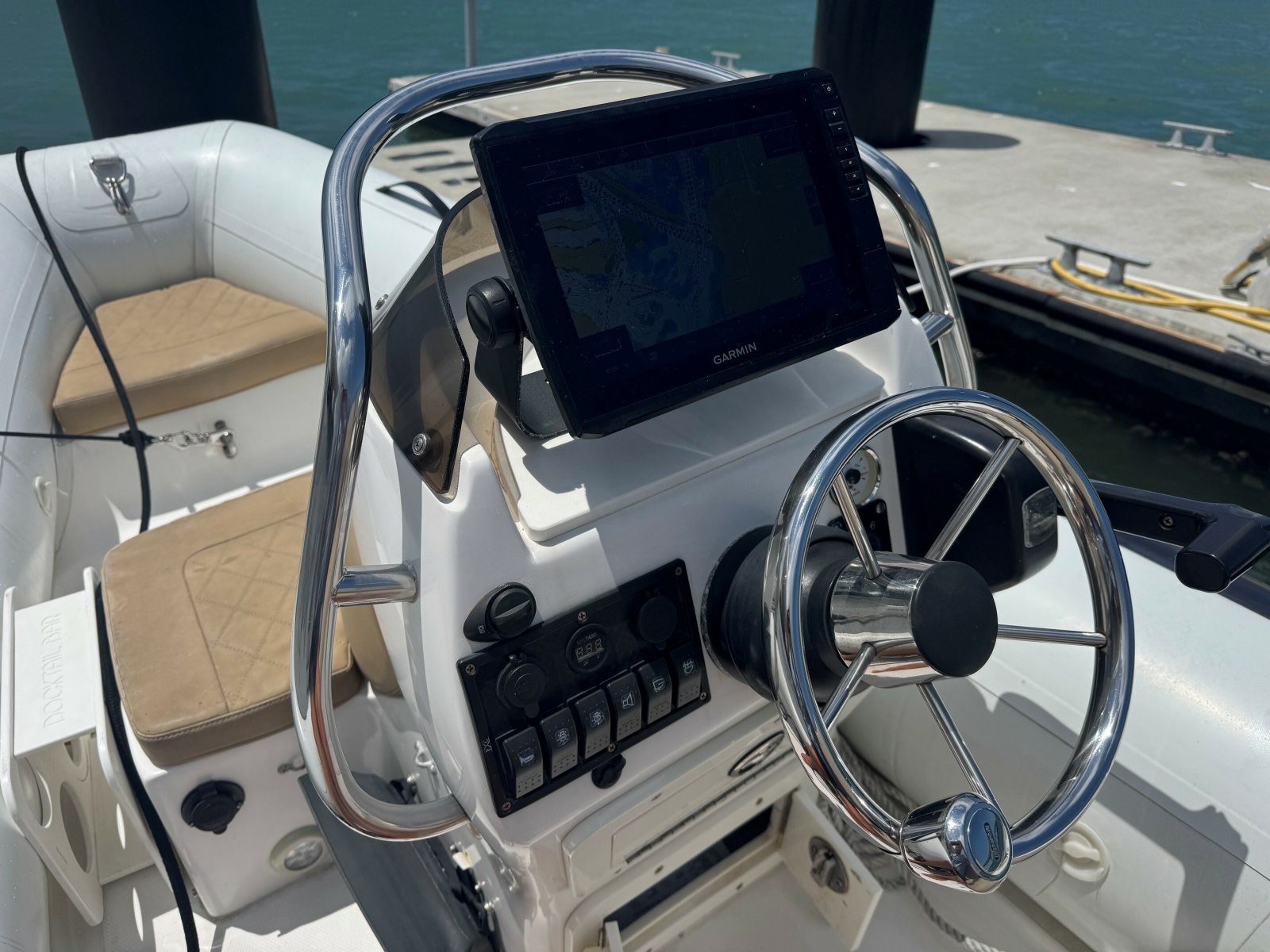

Her 12'6" Nautica Widebody RIB with 60 HP Yamaha is exceptionally equipped for

extended exploration, with Garmin navigation, custom helm controls, premium seating,

sunshade, underwater lighting, Bluetooth audio, dedicated chocks with integrated deck

mounting system, and auxiliary fuel capacity.

What truly distinguishes VIZCAYA is the exceptional flexibility of her tender deployment

system. The 1,600-lb Brower powered davit can launch and recover the Nautica from either

the stern or starboard side, while the transom Freedom Lift provides convenient water-level

deployment when desired. This dual-system configuration offers an uncommon degree of

flexibility in how and where the tender is launched, recovered, and operated.

The result is a remarkably capable exploration package that allows owners to leave the

mothership behind and go farther—reaching beaches, islands, shallow anchorages, dive

sites, remote coves, and destinations inaccessible to the yacht itself. VIZCAYA doesn't

simply carry a tender; she carries an exploration system designed to expand where the

adventure can take you.

Uncompromising Luxury Remains Central

VIZCAYA's long-range and exploration capabilities never come at the expense of luxurious

living, comfort, or refinement. She was developed to give her owners the ability to venture

farther and remain independent without sacrificing the experience of living aboard an

exceptionally finished motor yacht.

Throughout the yacht, Loro Piana designer treatments, upgraded cherry joinery, quartz

galley countertops and accents, heated stone and Granite surfaces, cedar-lined storage,

Italian light fixtures and door hardware, and sophisticated multi-scene direct and indirect

LED lighting create an atmosphere of understated luxury.

The accommodations are equally impressive, with a full-beam master suite with king size

bed, private VIP accommodations, flexible guest quarters, and dedicated captain/crew

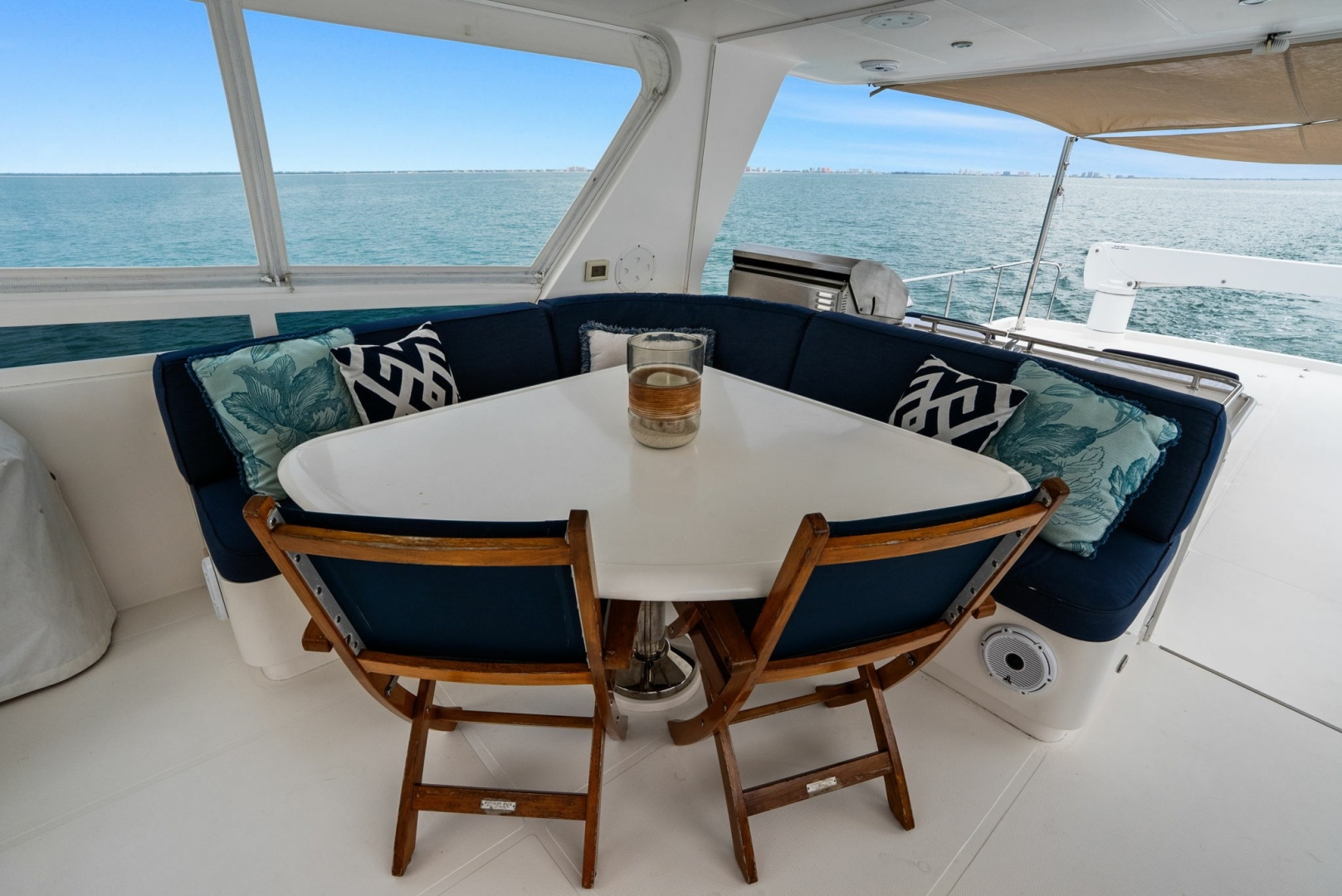

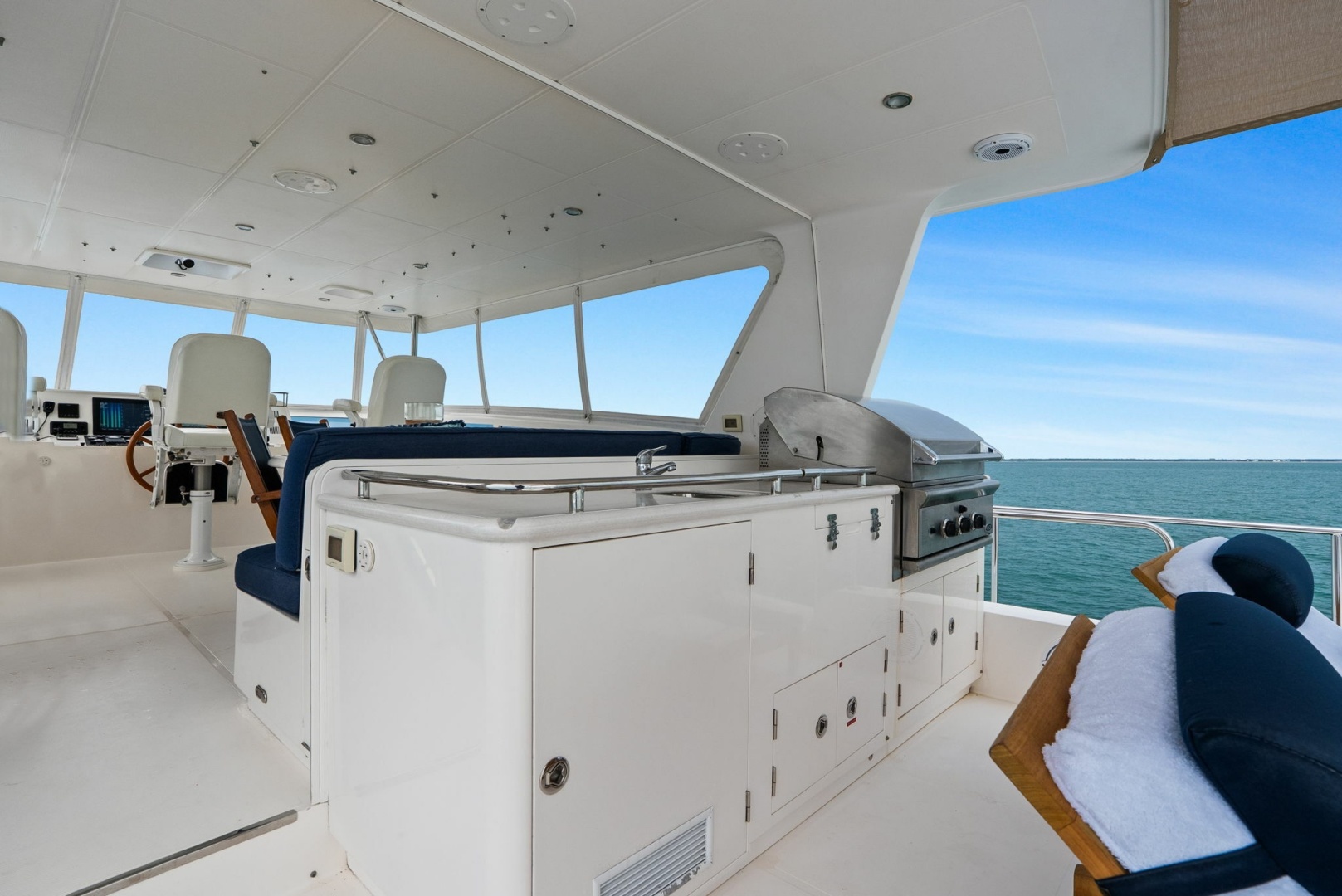

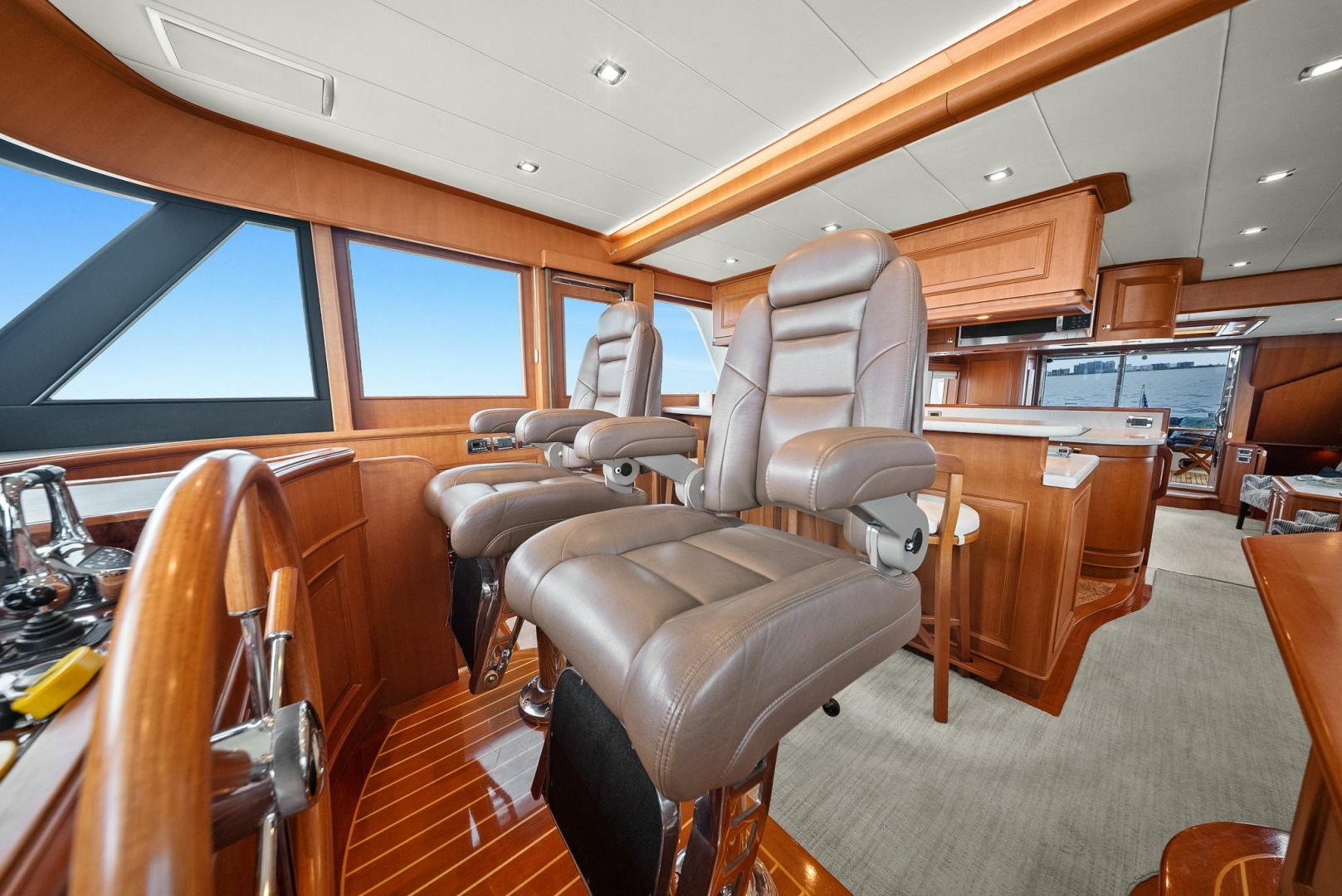

accommodations, while expansive salon, aft-deck, pilothouse, and flybridge spaces

provide multiple environments for relaxing, dining, entertaining, or simply enjoying life at

anchor.

Multiple climate-control zones, diesel-fired hydronic heating, premium entertainment

systems, refined furnishings, and thoughtful details throughout ensure that VIZCAYA feels

as exceptional at anchor or underway as she does capable in remote waters.

The result is a rare combination: a yacht engineered for independence and exploration, yet

conceived as a luxurious home at sea.

Luxury without Compromise

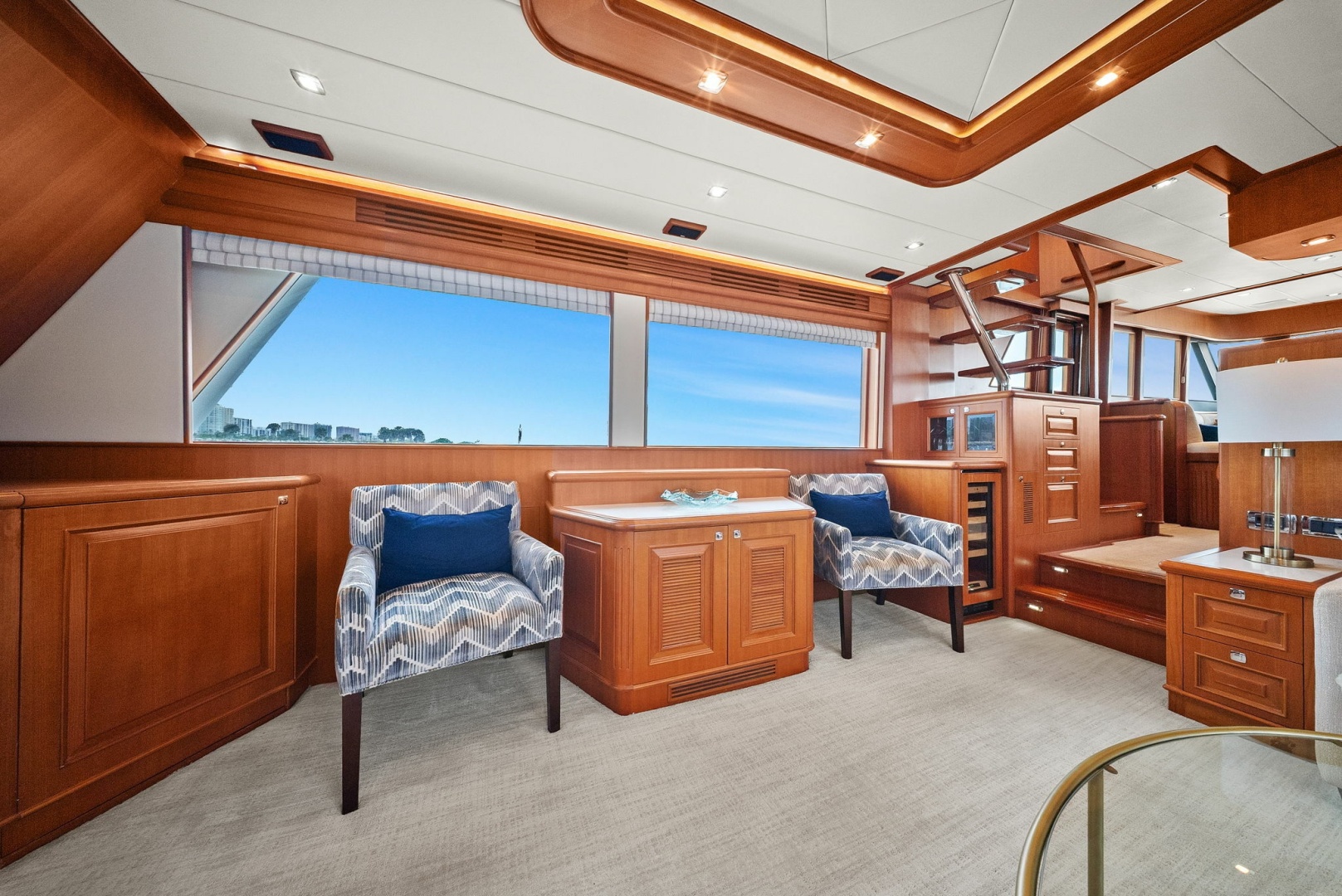

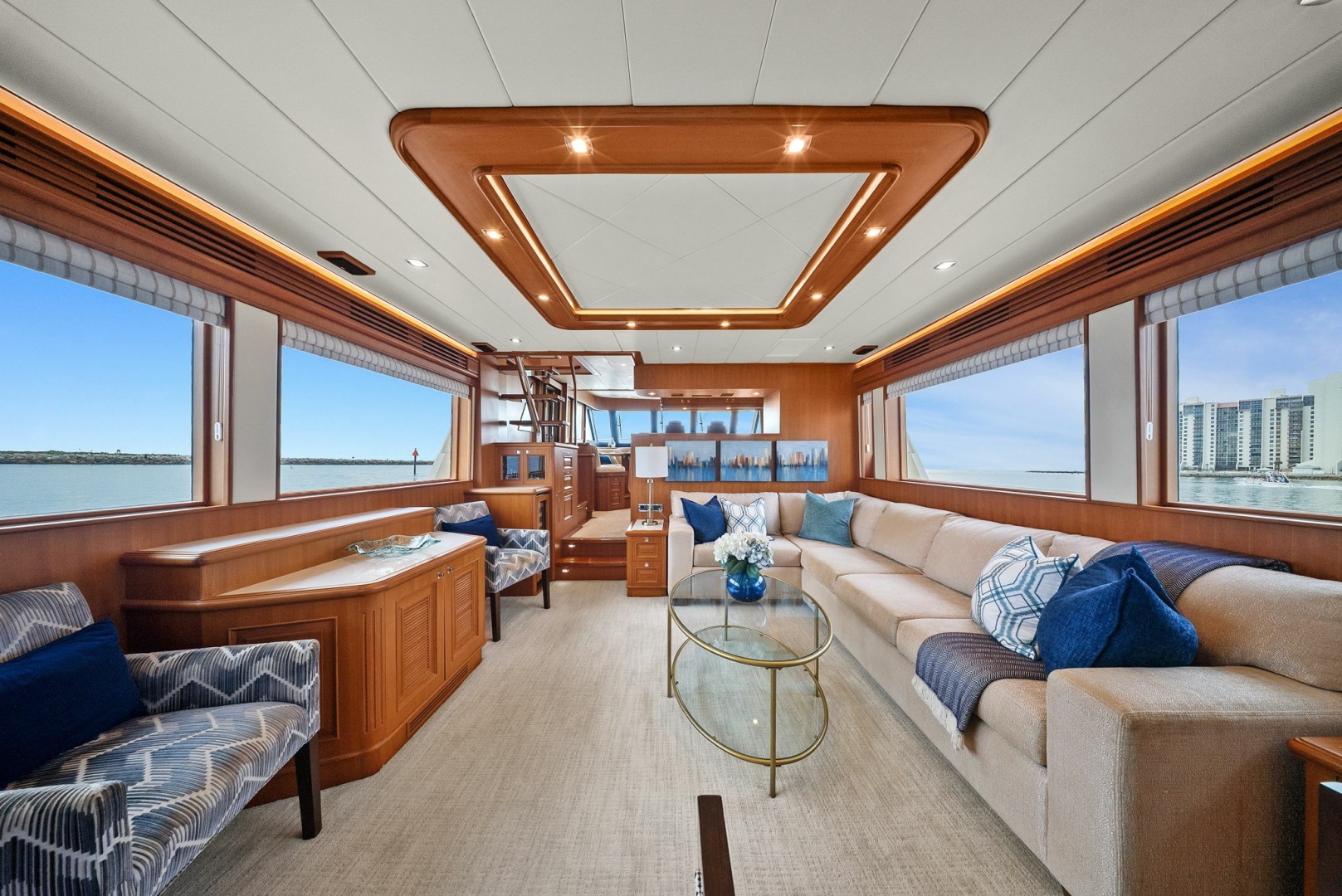

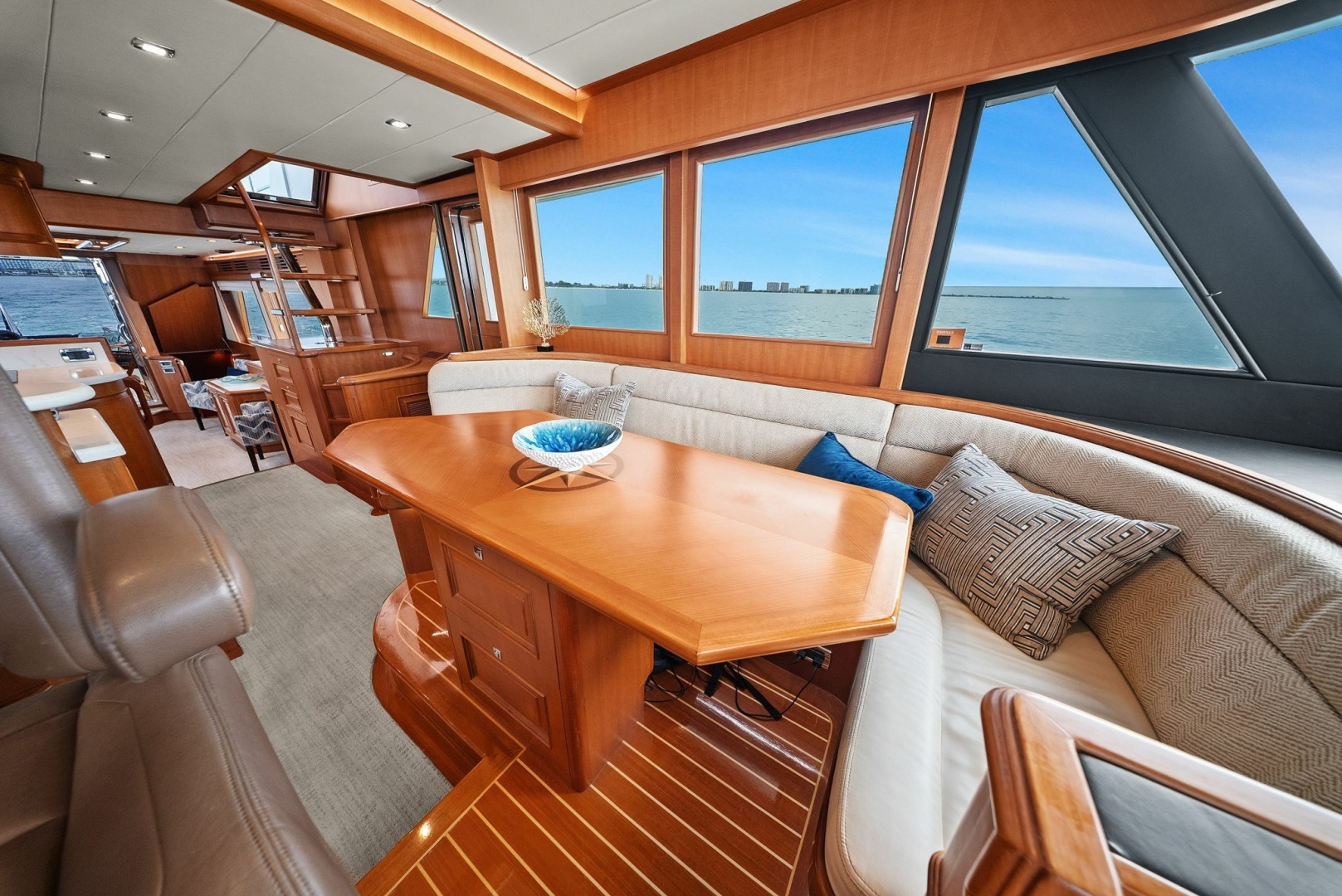

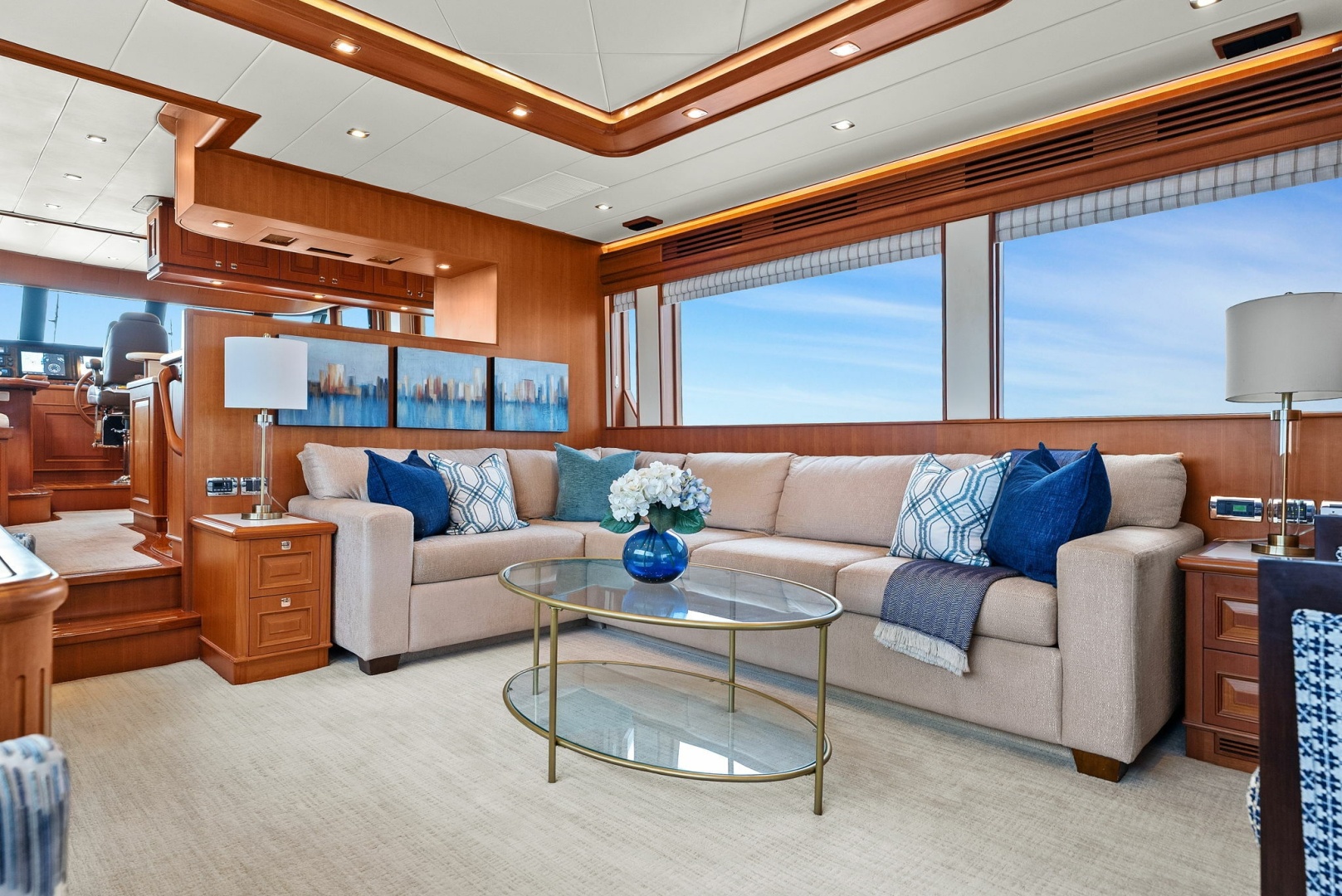

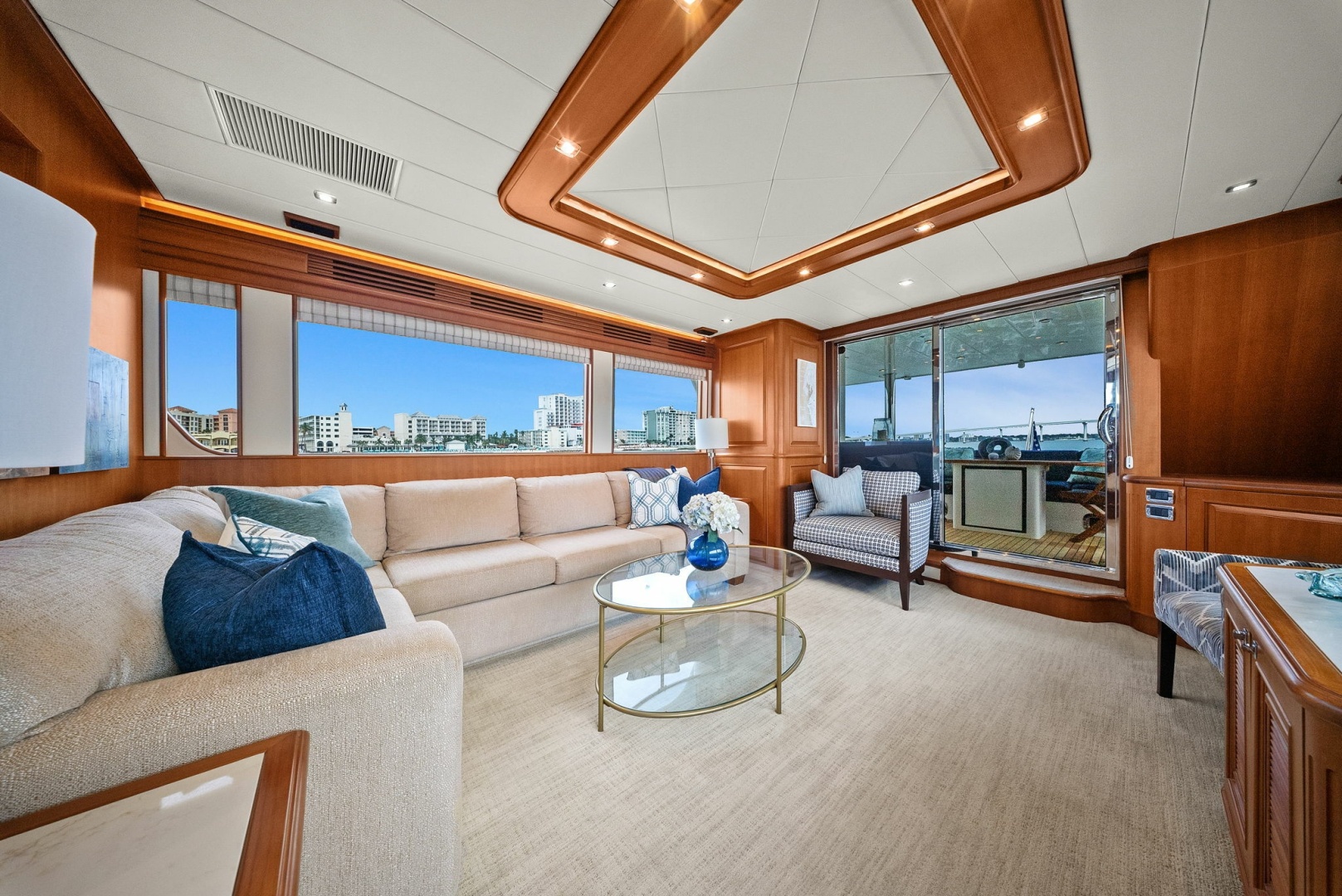

SALON — Refined Living at Sea

The salon combines Hampton's traditional cherry joinery with contemporary comfort and

technology. Large windows provide abundant natural light and panoramic views, while

custom lighting, premium furnishings, upgraded entertainment, and carefully selected

materials create an elegant environment equally suited to entertaining or relaxing while underway.

• Luxurious Custom Interior: Loro Piana window treatments with upgraded Hunter Douglas shades, upgraded cherry furnishings with quartz accents, premium carpeting with upgraded padding, and tinted glazing for comfort, privacy, and elegance.

• Custom Lighting & Ambiance: Designer ceiling treatment with multiple direct and indirect LED lighting scenes.

• Refined Salon Seating: Custom starboard sofa with integrated storage, designer barrel chair, two lounge chairs, and elegant glass coffee table with storage.

• Entertainer’s Wet Bar: Upgraded quartz countertop with integrated wine chiller.

• Premium Entertainment System: Concealed 48" pop-up Smart TV, KVH satellite TV, Bose Lifestyle surround sound with subwoofer, and Blu-ray/DVD.

• Year-Round Climate Control: Dual Dometic Marine Air systems with Smart Start for redundant A/C, plus upgraded diesel-fired hydronic heating with thermostat.

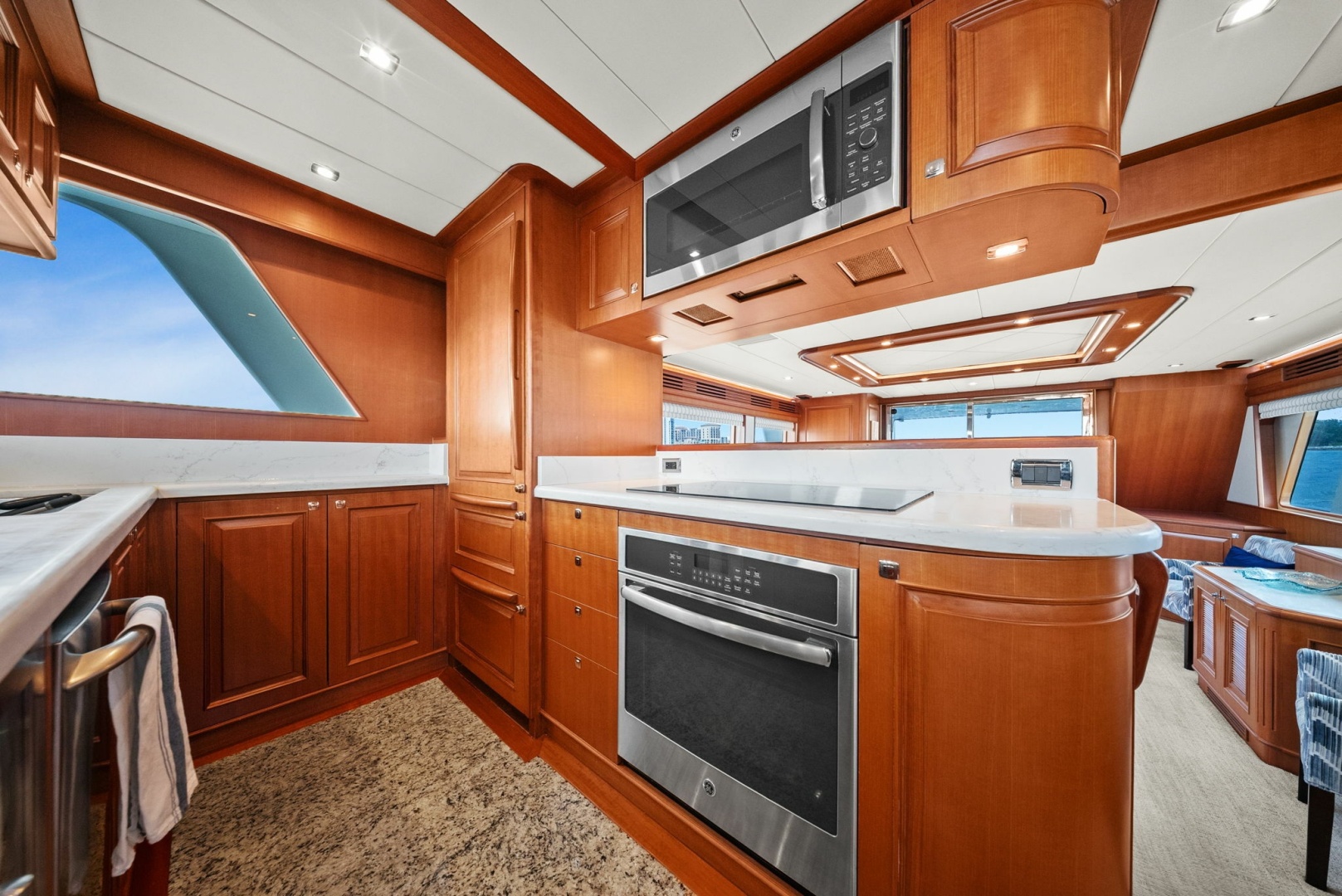

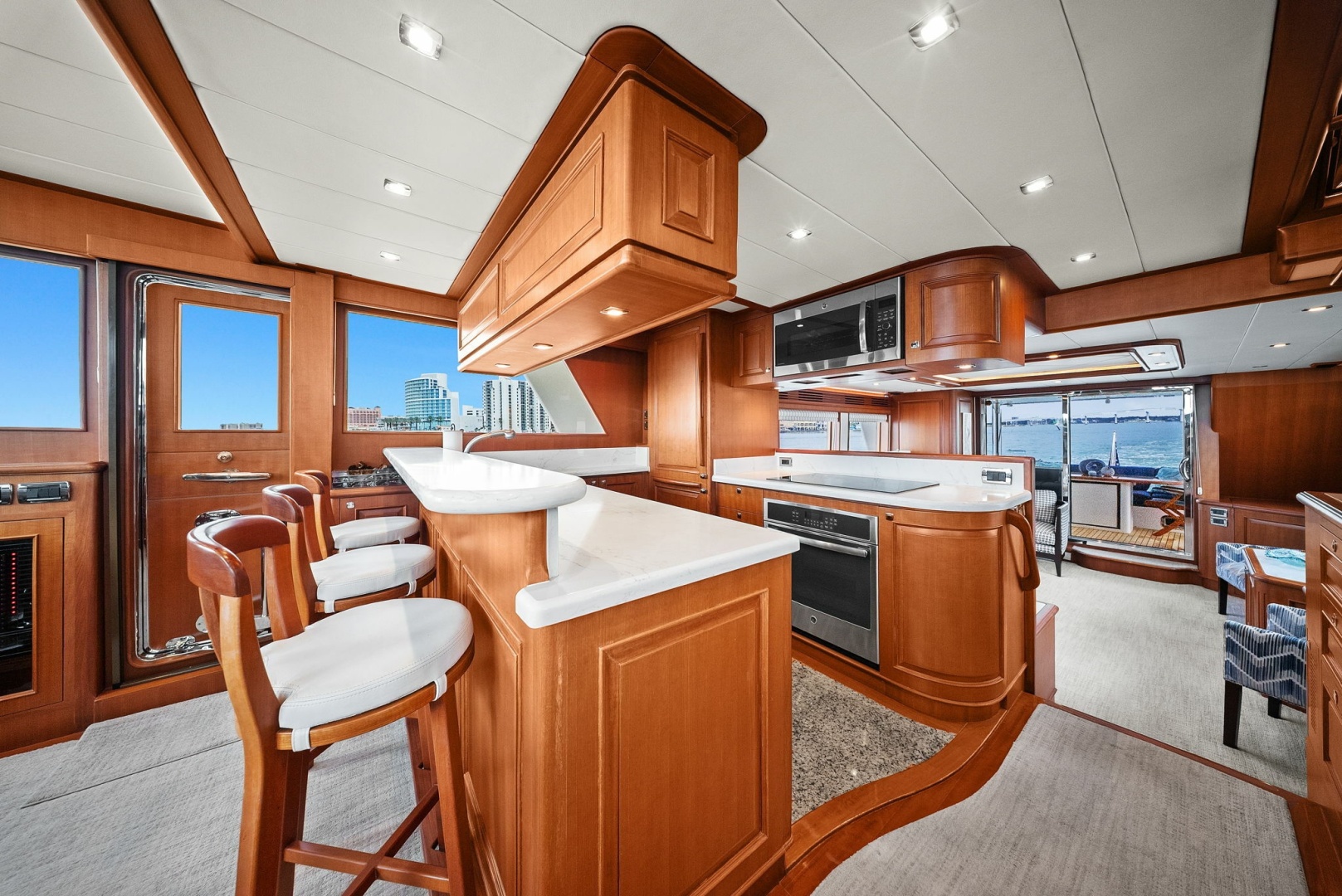

GALLEY — Designed for Extended Cruising

Unlike many yachts designed primarily for weekends, VIZCAYA's galley was designed to

support extended cruising and comfortable onboard living. Premium appliances,

abundant storage, generous preparation space, and heated flooring allow meals to be

prepared with the same convenience expected in a luxury home.

• Open-Concept Gourmet Galley: Beautiful quartz countertops, heated granite flooring,

and an unobstructed sightline from the pilothouse helm to the aft-deck settee• Open design - offering unobstructed open view from the pilothouse helm to the aft deck settee.

• Premium Appliance Package: Sub-Zero refrigerator with dual freezer drawers and integrated ice maker; GE Profile induction cooktop with ventilation; GE convection oven and microwave; GE dishwasher and disposal.

• Entertainer’s Galley: Custom wine chillers, oversized stainless-steel sink with Grohe single-lever faucet, and exceptional drawer and cabinet storage for extended cruising.

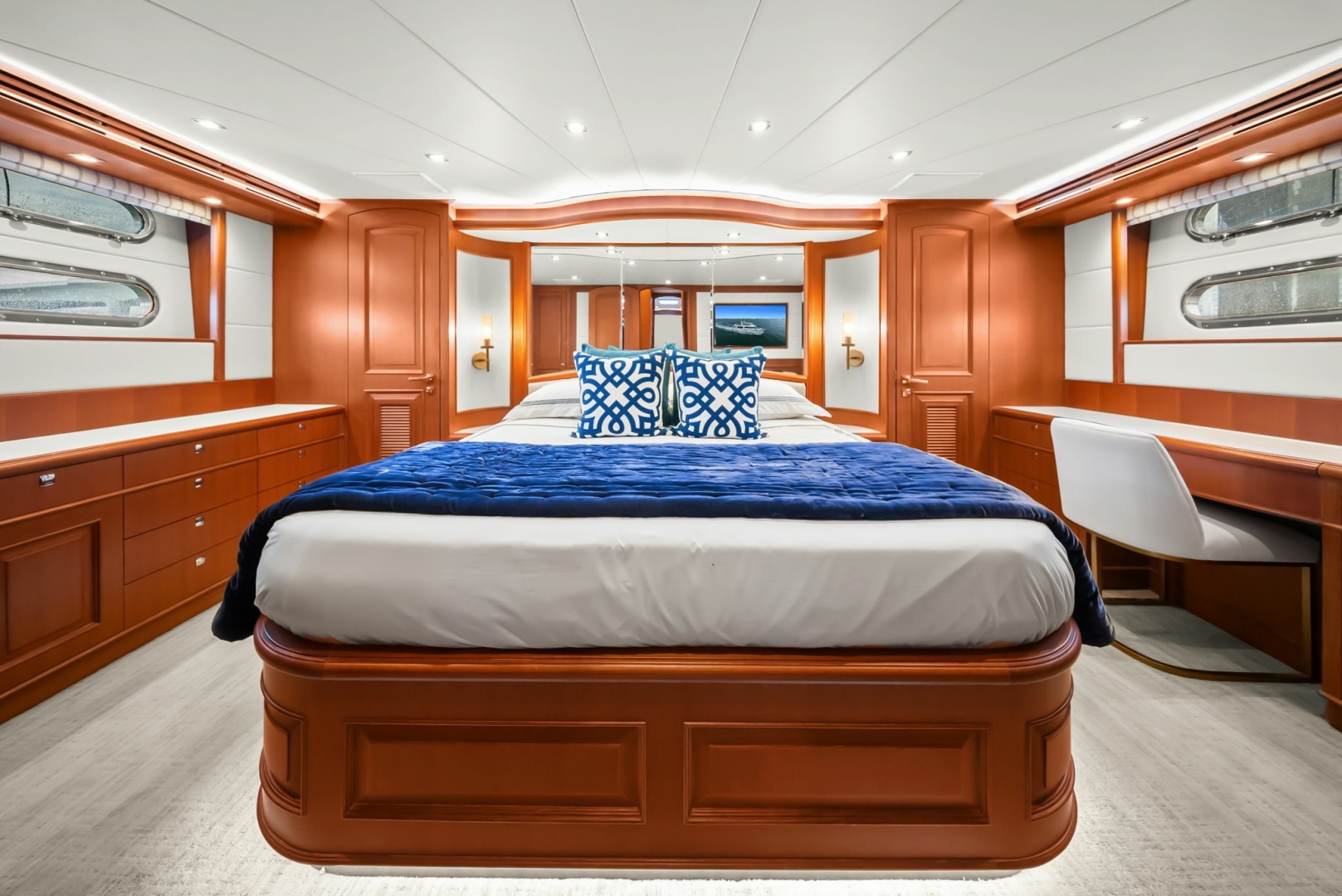

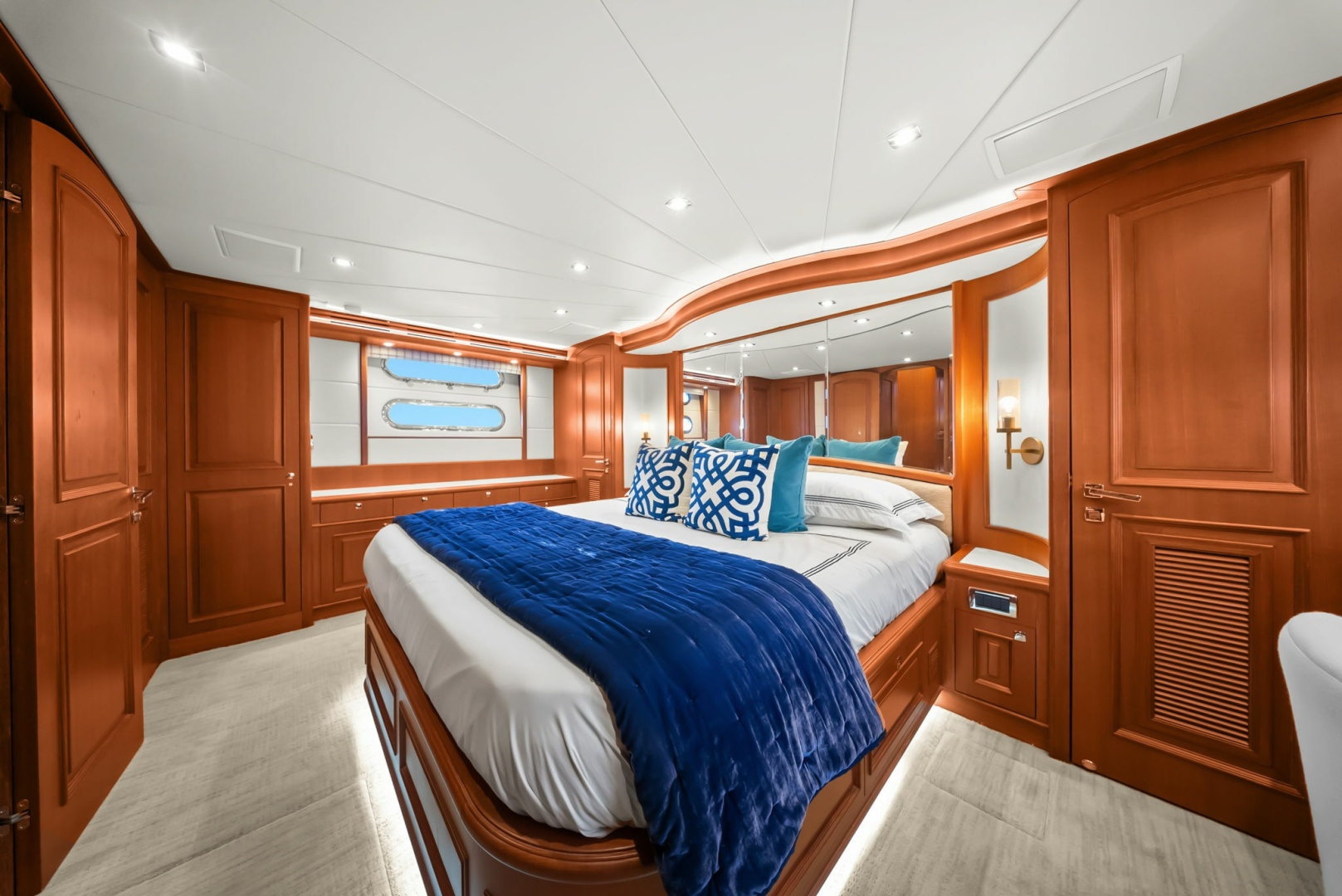

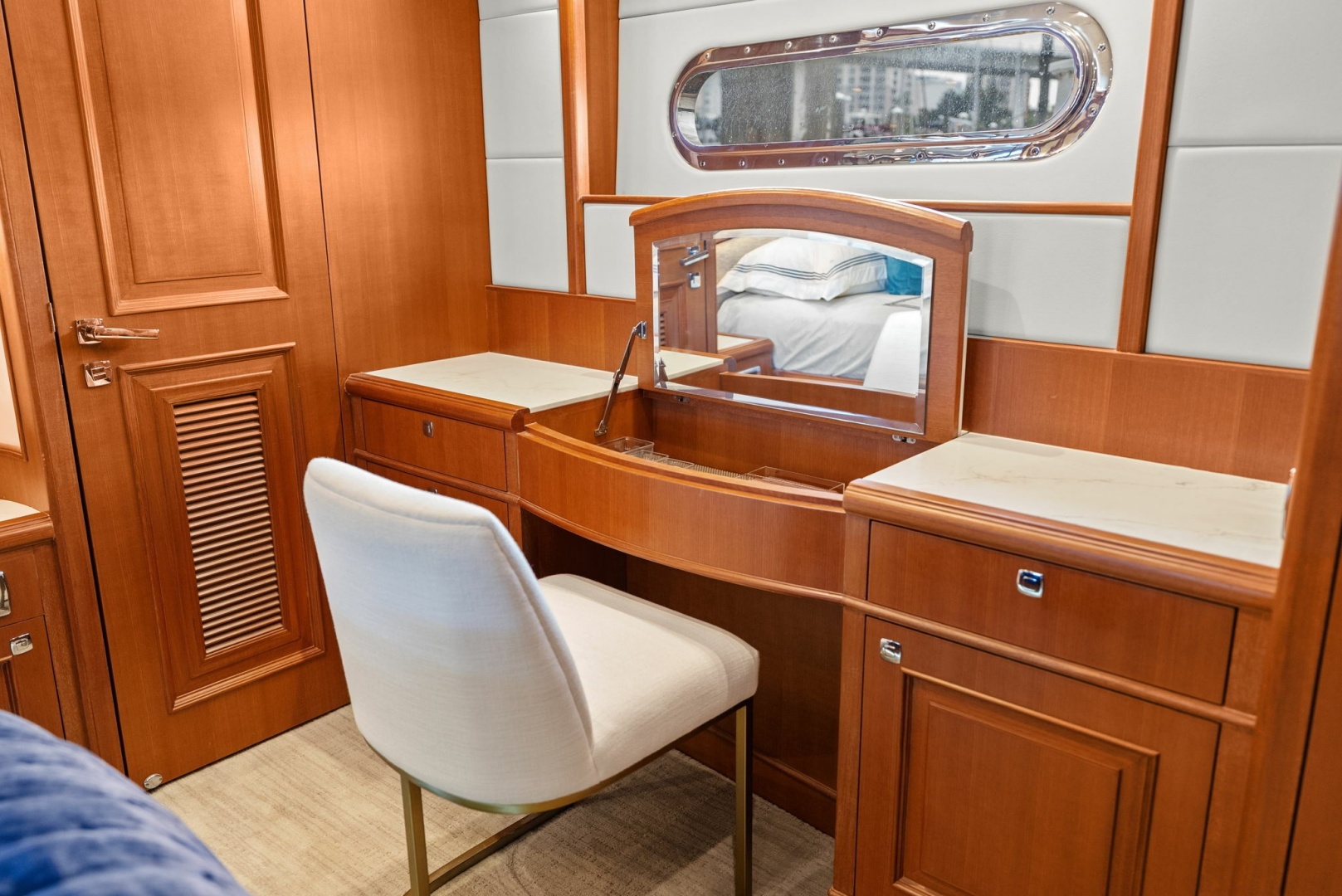

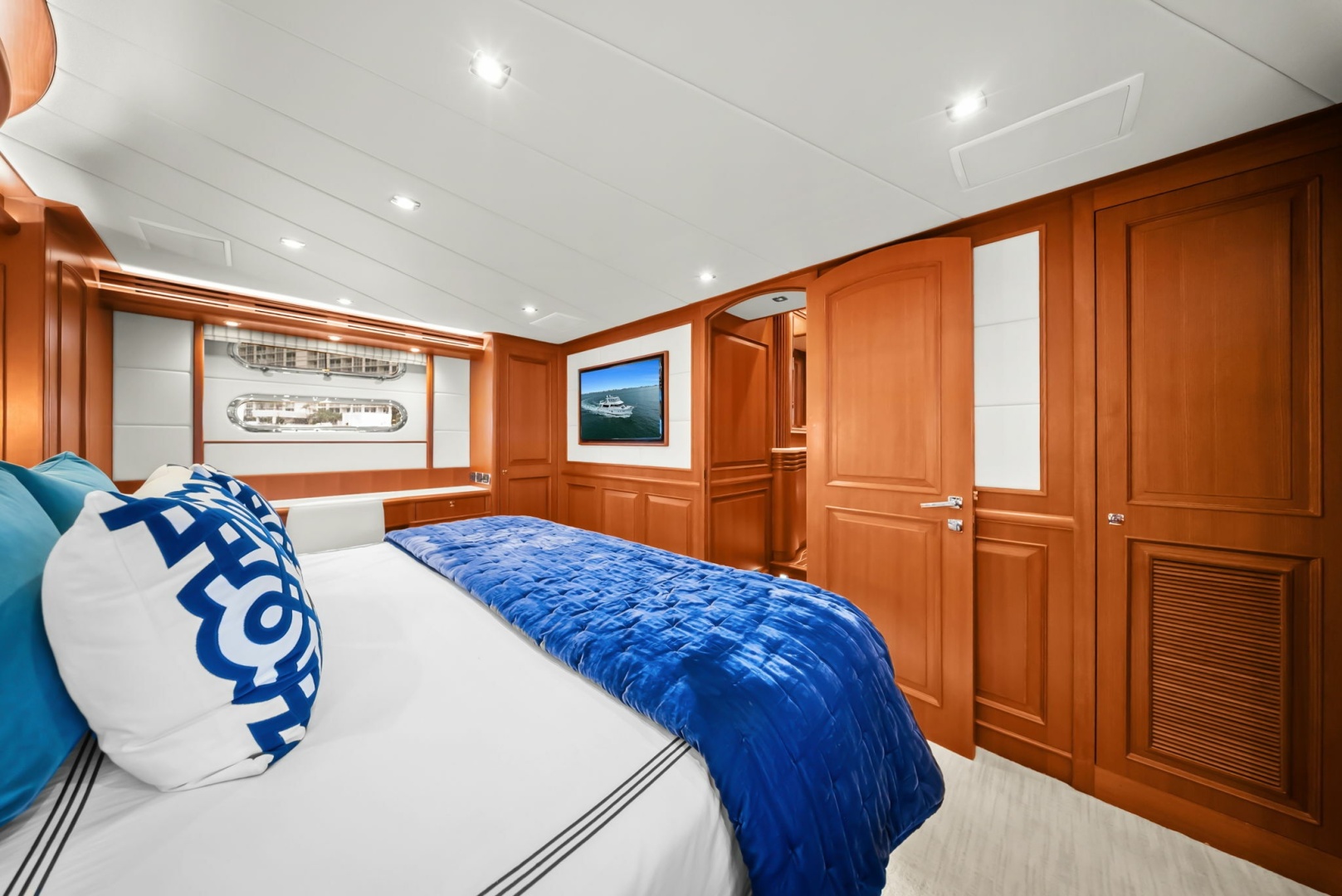

MASTER SUITE — Full-Beam Private Retreat

The full-beam owner's suite offers the privacy and comfort of a luxury waterfront

residence. Rich cherry joinery, custom lighting, heated Granite flooring, premium

finishes, and abundant storage create a peaceful retreat after a day of cruising.

• Luxurious Custom Master Suite: Loro Piana window treatments with remote-controlled electric shades, upgraded cherry furnishings with quartz accents, premium carpeting, tinted glazing, and custom headliner with multi-scene LED lighting.

• King Master Berth & Ensuite: Centerline king berth with upgraded mattress, private ensuite head, vanity with mirror/chair and quartz accents, and built-in quartz-inset end tables.

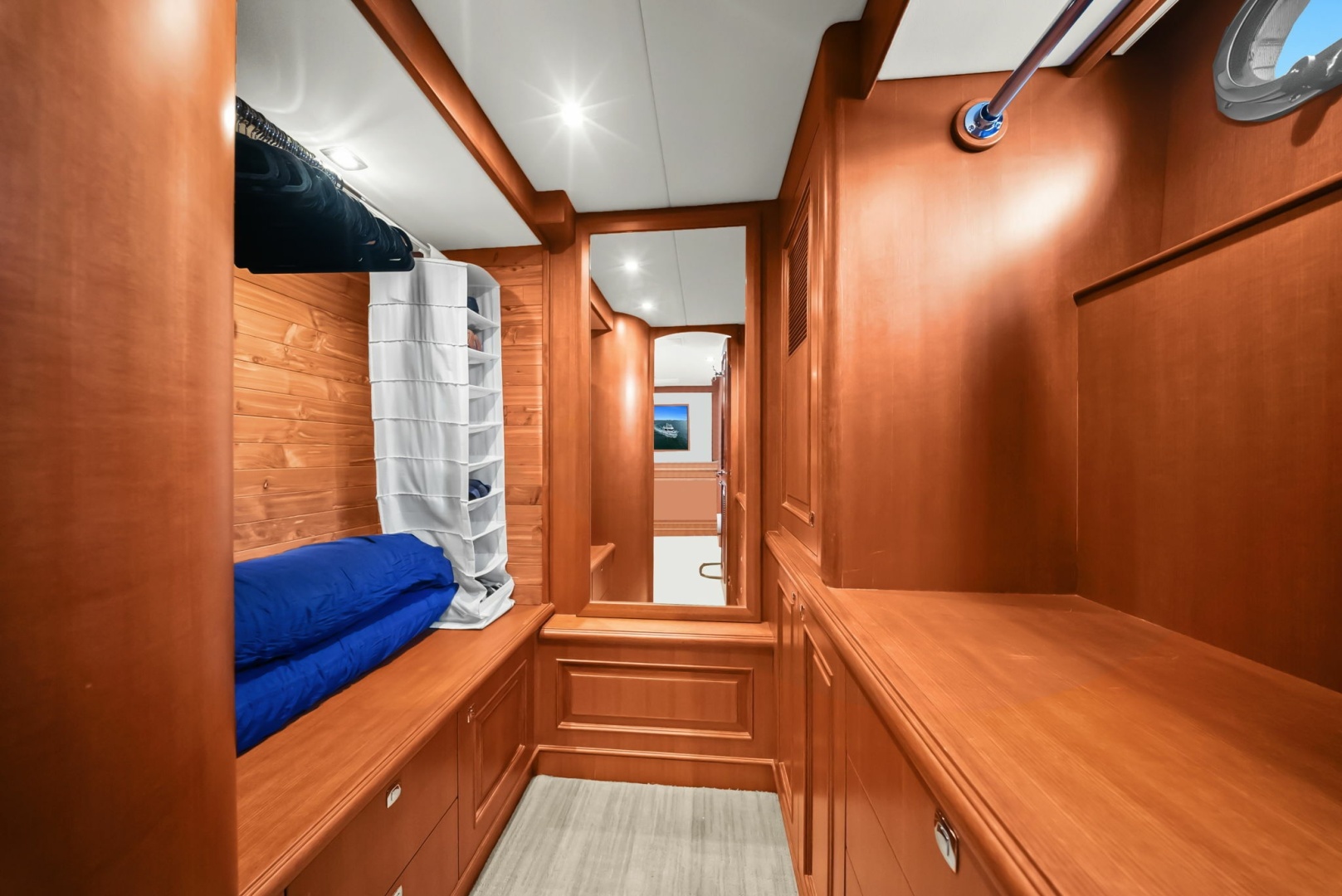

• Exceptional Storage: Walk-in cedar-lined closet, two additional cedar-lined hanging lockers, ample drawer storage, concealed safe, and purpose-built underfloor storage for extended cruising.

• Light, Privacy & Comfort: Large port/starboard windows, including opening windows with screens, plus blackout shades and additional port/starboard glazing.

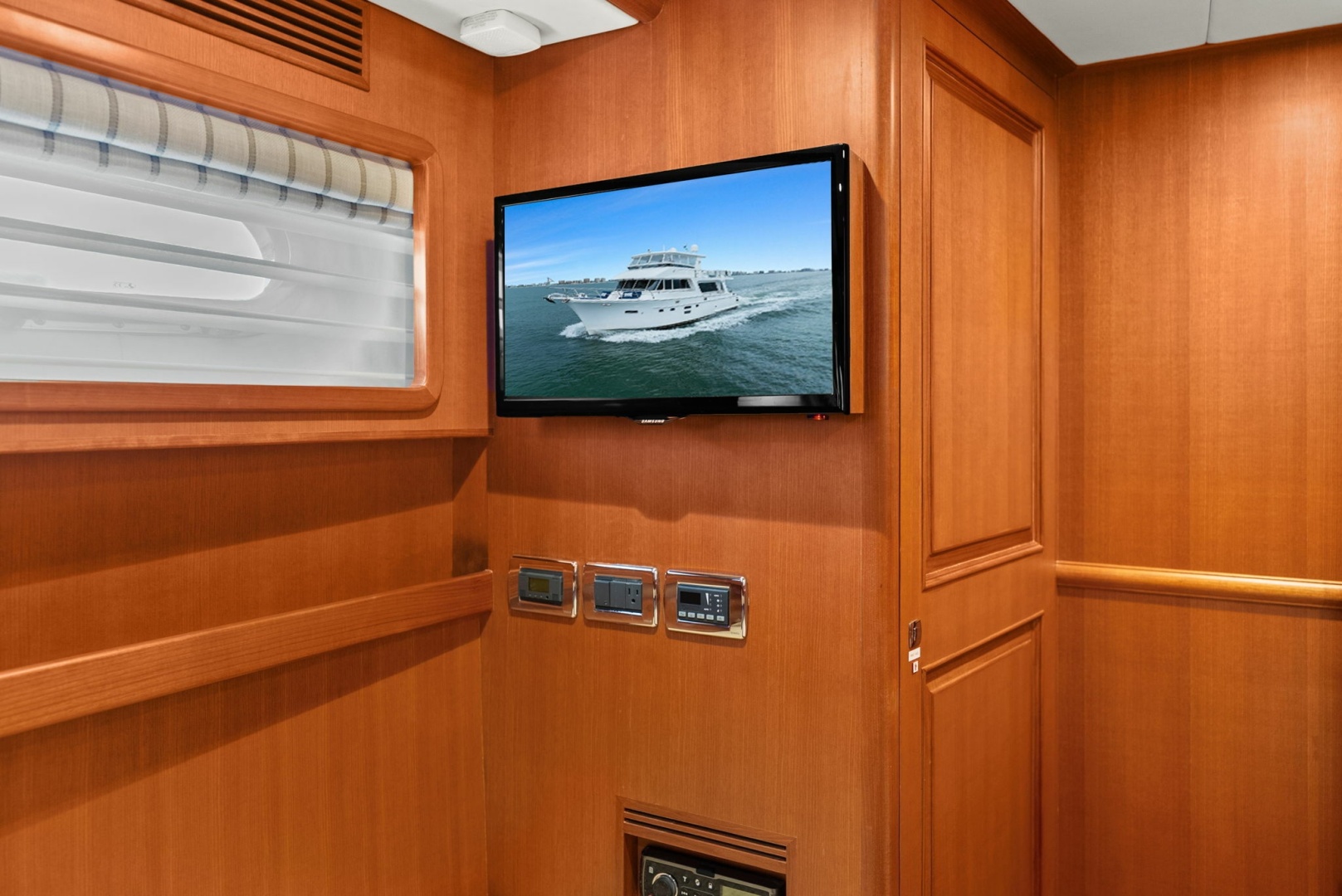

• Integrated Entertainment: 40" LED Smart TV with concealed satellite tuner and Blu-ray/DVD, complemented by Fusion marine audio with four Polk Audio ceiling speakers.

• Refined Details: Italian light fixtures and door hardware, SS Vimar 110VAC outlets, and custom interior finishes throughout.

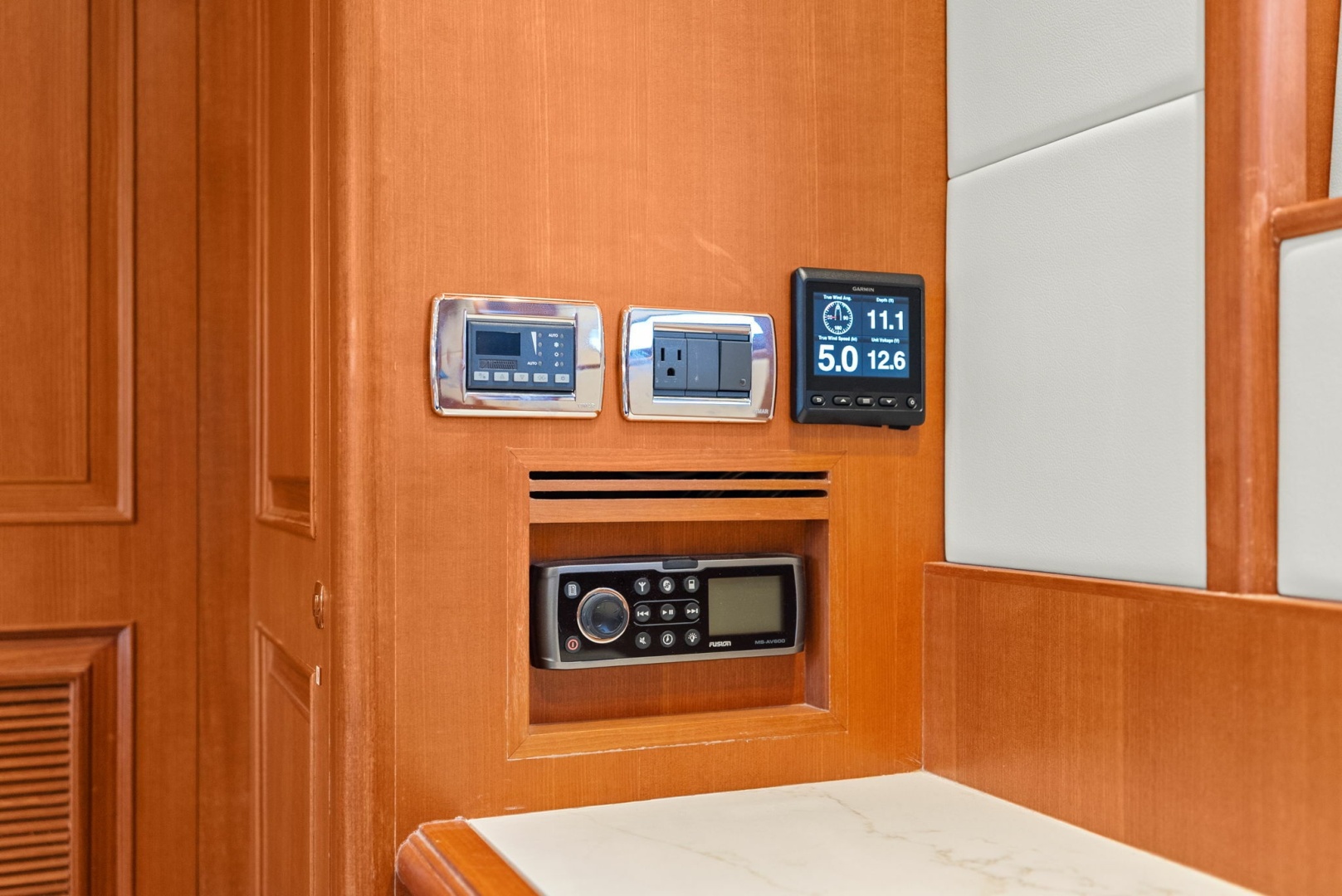

• Advanced Monitoring & Climate Control: Garmin remote vessel monitoring with alarm, dual Dometic Marine Air A/C with Smart Start for redundant climate control and upgraded diesel-fired hydronic heating with thermostat.

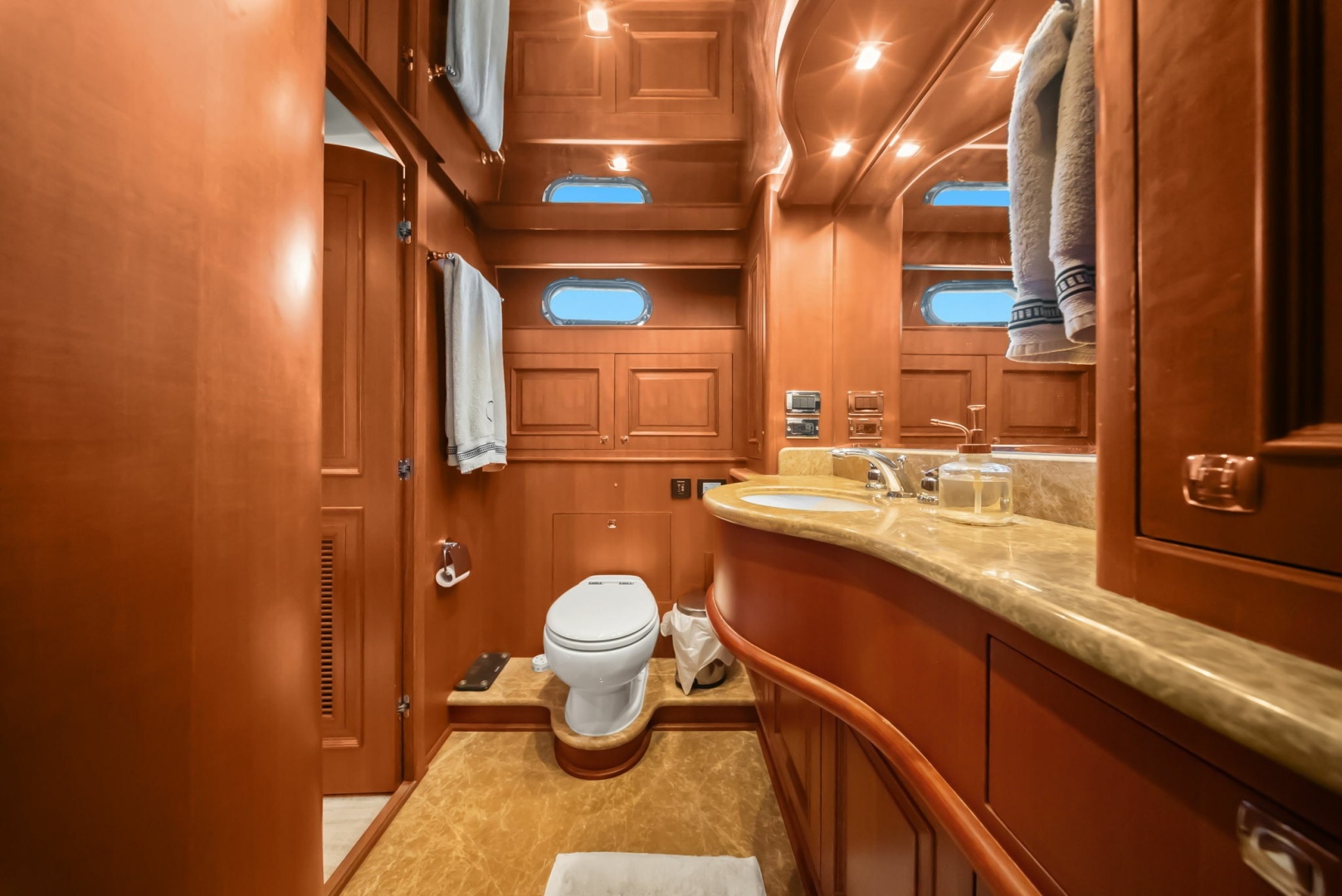

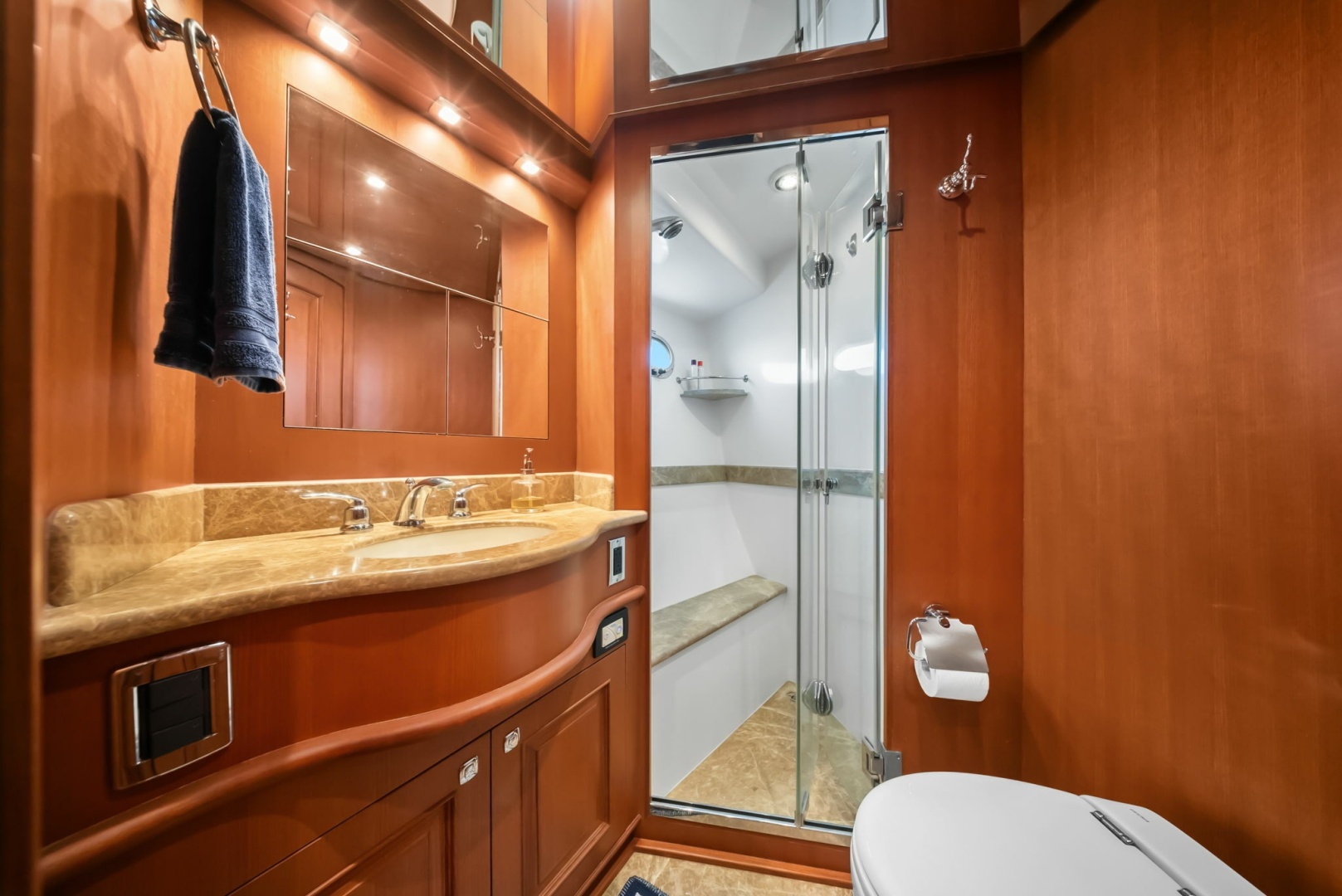

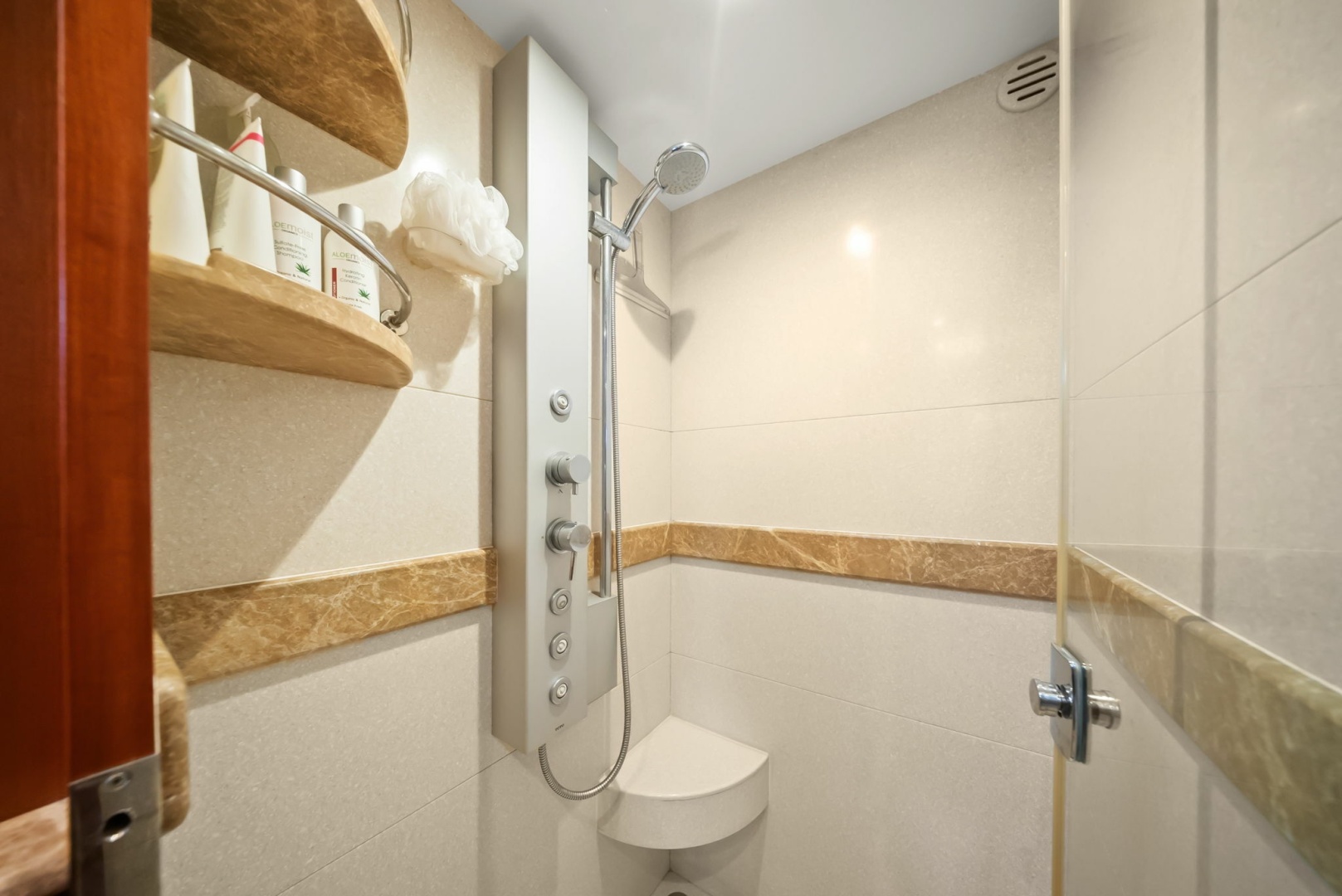

MASTER HEAD

A refined, residential-style master head featuring heated Granite flooring, a spacious

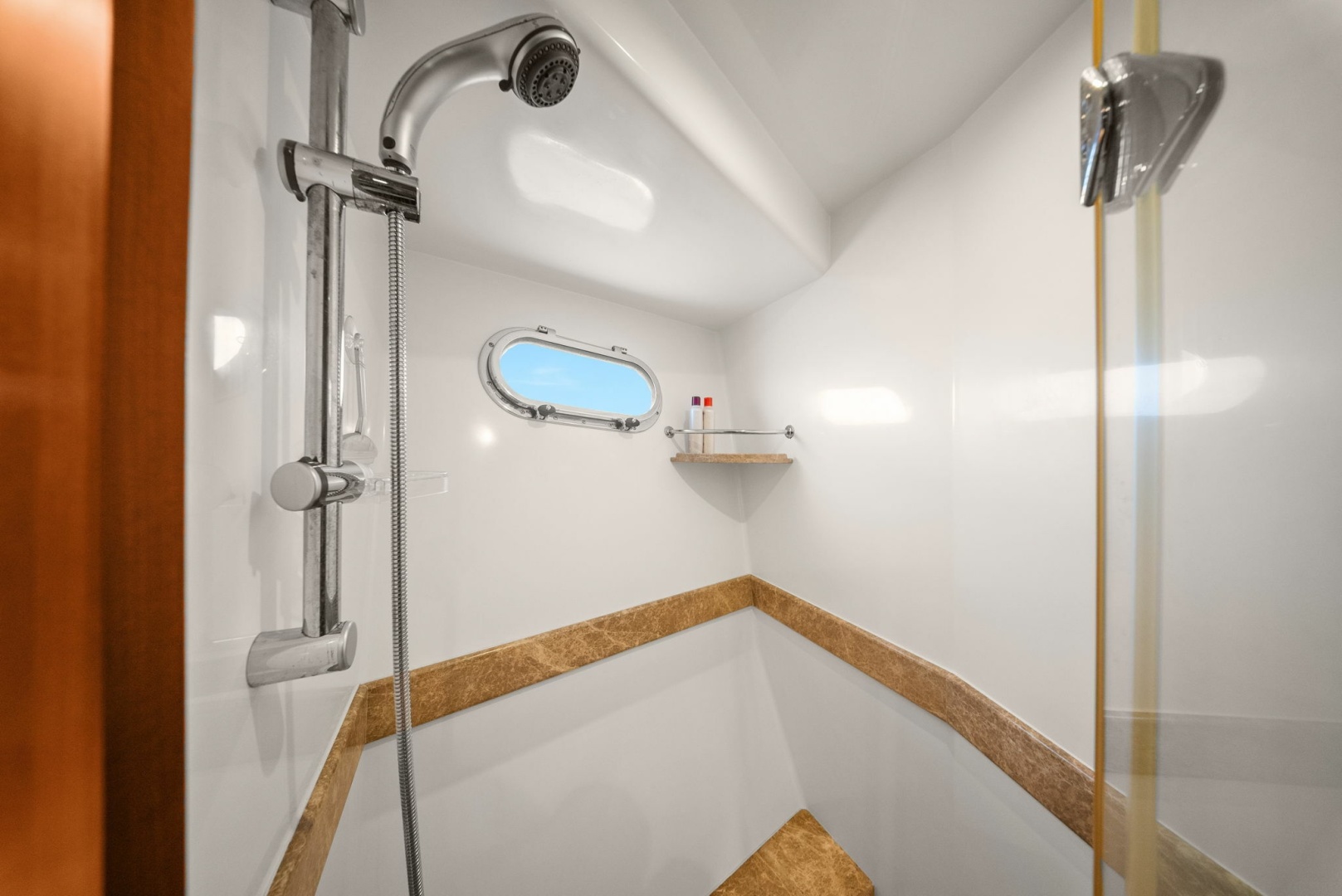

shower with upgraded massage tower, premium vanity finishes, climate control, and

thoughtfully integrated lighting for exceptional comfort and luxury.

• Luxury Ensuite Head: Granite countertop and heated granite flooring, Tecma Quiet Flush toilet, and oversized shower with upgraded massage tower.

• Refined Comfort & Storage: Custom vanity with ample storage, climate-controlled interior with exhaust fan, and starboard opening window with screen.

• Ambient Lighting: Multi-scene direct and indirect LED lighting for a refined, comfortable atmosphere.

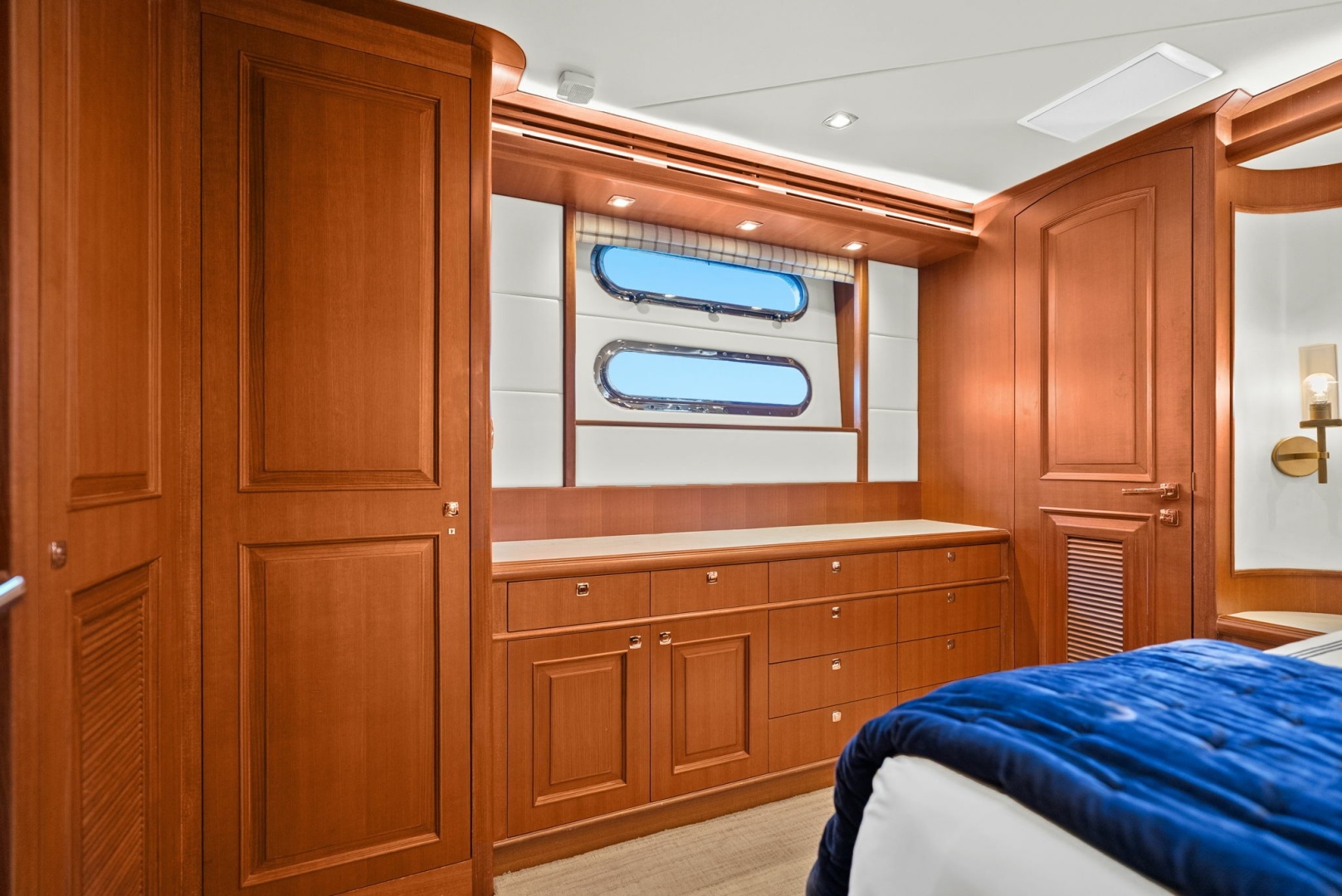

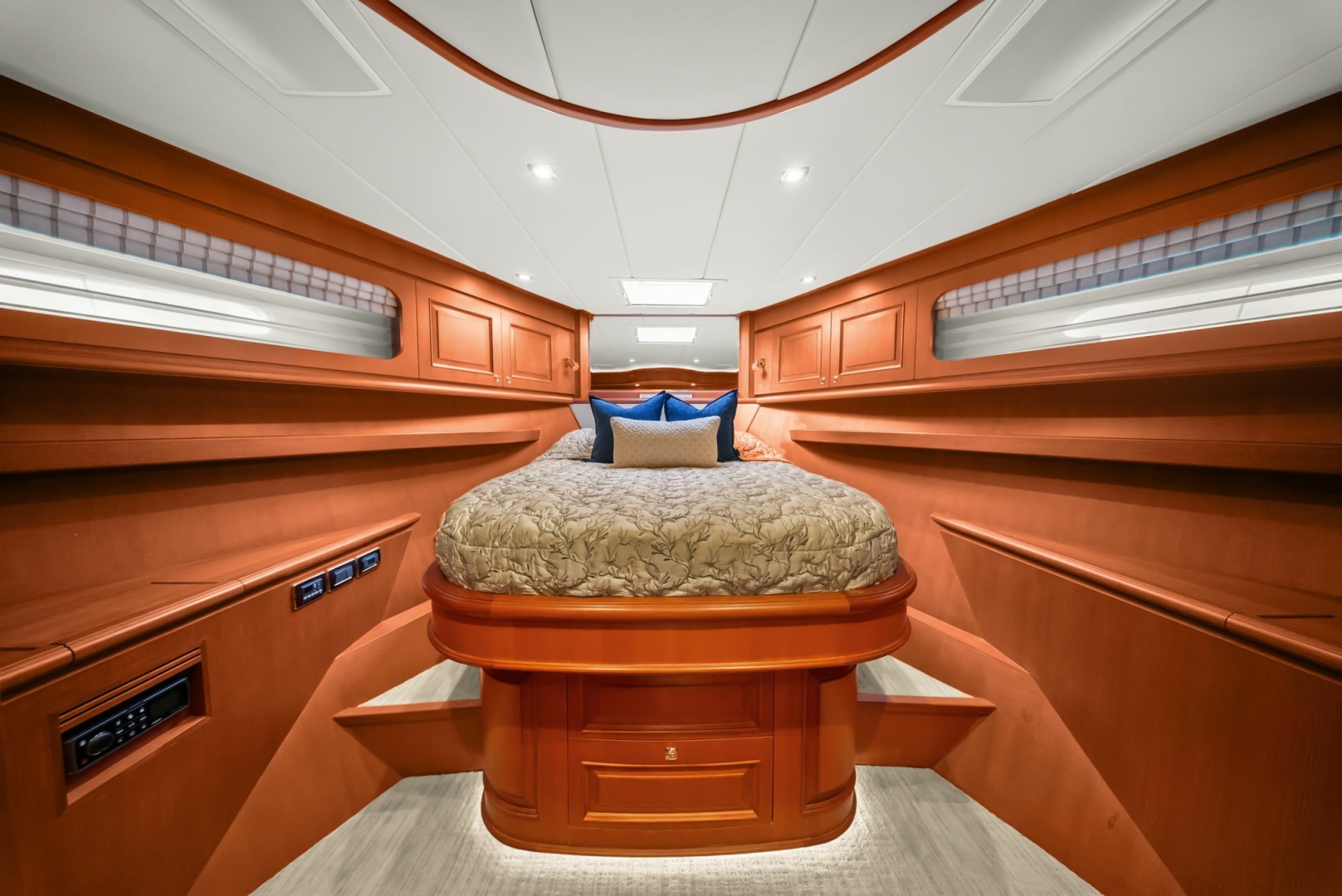

VIP STATEROOM — Private Guest Luxury

Designed as a private retreat for owners or guests, the VIP stateroom combines refined

luxury with the comfort and functionality expected for extended cruising. An island queen

berth, custom Loro Piana treatments, rich cherry furnishings, dedicated climate control,

premium entertainment, and abundant storage create an inviting and exceptionally

comfortable accommodation.

• Luxurious Guest Suite: Loro Piana window treatments with remote-controlled electric shades, upgraded cherry furnishings, premium carpeting, custom headliner, and multi-scene direct/indirect LED lighting.

• Island Queen Berth: Centerline island queen with upgraded mattress, dedicated reading lights, private head access, and overhead tinted skylight with Ocean-Air screen.

• Exceptional Storage: Cedar-lined hanging locker, ample drawers and storage cabinets, and premium Vimar stainless-steel 110VAC outlets.

• Integrated Entertainment: 29" wall-mounted TV with concealed satellite tuner and Fusion marine audio with dual Polk Audio ceiling speakers.

• Year-Round Comfort: Dometic Marine Air climate control with upgraded diesel-fired hydronic heating and thermostat.

VIP / GUEST HEAD

The adjoining private head features heated marble flooring, a marble vanity, Tecma Quiet

Flush toilet, separate shower, and dedicated climate control, providing residential-quality

comfort throughout the voyage.

• Luxury Head: Granite countertop and heated granite flooring, Tecma Quiet Flush toilet, separate stall shower with exhaust fan, and climate control.

• Elegant Vanity & Storage: Vanity with mirror and dedicated medicine cabinet.

• Natural Light & Ambiance: Opening portlight with screen and multi-scene direct/indirect

GUEST STATEROOM — Flexible Accommodation

Comfortable and thoughtfully appointed, the portside guest stateroom provides a

welcoming private retreat for family or guests. Flexible twin berths convert to a larger single

configuration, complemented by custom Loro Piana treatments, rich cherry/satin veneer

finishes, dedicated climate control, premium entertainment, and ample storage for

extended cruising.

• Luxurious Guest Cabin: Loro Piana window treatments with remote-controlled electric shades, upgraded cherry/satin-veneer furnishings with custom raised paneling, and refined LED lighting.

• Convertible Twin Berths: Two upgraded side-by-side berths with sliding conversion system to create a spacious single berth configuration.

• Comfort & Storage: Cedar-lined hanging locker, ample drawer storage, two portlights/windows, bedside table with lamp, and dedicated reading lights.

• Integrated Entertainment: 22" wall-mounted TV with concealed satellite tuner and Fusion marine audio with dual Polk Audio ceiling speakers.

• Year-Round Climate Control: Dometic Marine Air with climate control, complemented by upgraded diesel-fired hydronic heating with thermostat.

AFT SUITE — Flexible Captain, Crew Or Guest Accommodation

One of VIZCAYA's most unique and versatile living spaces, the private aft suite has

been thoughtfully designed to adapt to the owner's cruising lifestyle. Whether serving

as luxurious captain's quarters, a private guest retreat, dedicated crew

accommodations, or an extended-cruising utility suite, this beautifully finished space

offers exceptional comfort, privacy, and functionality.

• Private Aft Crew Area — Area beautifully appointed with premium handcrafted wood cabinetry, Cherry and Holly flooring, designer paneling, and LED accent lighting, the aft crew accommodations feature a private cabin, separate head and shower, access to engine room, 110VAC SS Vimar outlets, abundant drawer and underfloor storage, and a thoughtfully designed central lounge with a multifunction table, integrated sink and refrigerator, fold-up/down table extensions, and custom wood bar stools, creating an exceptionally comfortable, practical, and highly functional living space for extended cruising or professional crew.

• Captain/Crew Quarters / Additional Private Stateroom — Beautifully appointed

private accommodations featuring twin berths, a wall-mounted 22" television,

premium Fusion marine audio system with dedicated speakers, full-height cedar-

lined hanging locker, multiple storage drawers, elegant cherry and holly floor with

generous underfloor storage, dual portlights for abundant natural light and

ventilation, bedside table with convenient 110VAC stainless steel Vimar outlet,

dedicated reading light, Dometic Marine Air air-conditioning system with climate

control, and thoughtfully designed cabinetry, creating an exceptionally comfortable

and well-equipped retreat for crew or additional guests during extended cruising.

• Multi-Purpose Crew Area Option - Purpose-built multi-use crew facility designed for

maximum flexibility, functioning as a private crew shower when required or

converting into a dedicated dive and water-sports locker during owner-operated

passages. Custom dive tank storage, gear organization, and wet-storage capabilities

support extended cruising and exploration in remote locations.

• Multi-Purpose Crew Quarters - Highly versatile crew cabin/stateroom offering

exceptional flexibility for both crew accommodation and extended cruising support.

This space can easily transition into a dedicated provisioning and utility area with

additional refrigeration capacity, organized dry storage, and convertible pantry

cabinetry for self-sufficient long-range cruising.

Additional space can be configured as a crew shower, dive/watersports locker, provisioning

area, utility space, pantry, or additional refrigerated storage.

PILOTHOUSE - Command with Confidence

More than a helm, the pilothouse serves as the operational command center for

VIZCAYA. Modern Garmin navigation systems, comprehensive vessel monitoring,

redundant communications, and exceptional visibility combine to provide complete

situational awareness whether navigating busy harbors, coastal waterways, or offshore

passages.

• Advanced Garmin Command Center: Centerline helm with three 15" and one 10" multifunction displays, HD radar, autopilot, dual depth sounders with Panoptix forward-scanning sonar, FLIR day/night thermal camera, GPS/ chartplotting, AIS, windlass and comprehensive vessel monitoring.

• Professional Vessel Controls: Glendinning electronic engine/transmission controls, digital engine and vessel monitoring, bow/stern thrusters, Wesmar fin stabilizers, trim tabs, fire suppression, hydraulic windlass, searchlight, horn, and backup engine controls, and intuitive access to all primary vessel systems from a single command center.

• Premium Helm & Visibility: Twin adjustable Pompanette Platinum helm chairs, custom cherry/stainless-steel ship's wheel, panoramic ceramic-tinted windows with electronic shades, three Exalto windshield wipers/washers, and forward defrosters.

• Communications: VHF radio with Digital Selective Calling (DSC) providing reliable onboard and emergency communications for coastal and offshore passage making.

• Entertainment: 9000w Fusion Apollo multi-zone marine audio head unit with dual Polk Audio ceiling speakers in this zone.

• Refined Pilothouse: Adjustable portside dinette with custom upholstered settee and storage, Cherry & Holly sole with removable accent carpet, aircraft-style side doors with insect screens, and direct access to lower accommodations.

• Lighting, Power & Climate: Multi-scene LED lighting with dedicated red helm mode, Vimar 110VAC and USB-C/A outlets, Dometic Marine Air with Smart Start, and upgraded diesel-fired hydronic heating.

The pilothouse also incorporates a portside dinette, custom Makore cherry cabinetry,

Cherry and Holly sole, panoramic tinted windows, electronic shades, red helm lighting,

windshield defrosters, aircraft-style side doors, and direct access to the lower

accommodations.

FLYBRIDGE & UPPER DECK

Elevated above the water, the flybridge transforms every destination into an

unforgettable experience. Protected by a climate-controlled enclosure yet capable of

opening completely to the sea breeze, this expansive entertainment deck offers

panoramic views, comfortable seating, premium audio, outdoor cooking, and abundant

space for family and friends to enjoy life underway or at anchor.

• Advanced Flybridge Command Center: Centerline helm station featuring a complete Garmin integrated navigation suite with dual 15-inch multifunction touchscreen displays, radar, autopilot, dual depth sounders including Panoptix forward-scanning sonar, FLIR day/night thermal camera, GPS chart plotting, AIS, windlass remote controls, and comprehensive vessel monitoring for exceptional situational awareness in all cruising conditions.

• Professional Vessel Controls: Glendinning electronic engine/transmission controls, digital engine and systems monitoring, bow/stern thrusters, Wesmar fin stabilization, trim tabs, fire suppression, hydraulic windlass, searchlight, horn, and redundant vessel controls.

• Communications: VHF radio with Digital Selective Calling (DSC) providing reliable onboard and emergency communications for coastal and offshore passage making.

• Multi-Scene Lighting: Direct and indirect LED lighting system featuring dedicated red helm navigation lighting to preserve night vision while underway, along with customizable

ambient lighting for entertaining.

• Premium Helm & Visibility: Three adjustable Pompanette helm chairs, custom Makore Cherry/stainless helm wheel, molded FRP windshield with safety glass, 360° hardtop enclosure, tinted glass hatches, and glass access hatch to the pilothouse.

• Exceptional Outdoor Living: Expansive L-shaped settee with adjustable Hi/Lo dining table, Restoration Hardware teak chaise lounges, teak console table, custom sunshade system offering flexible partial or full-shade coverage, and abundant storage for cruising gear and water toys.

• Entertainment & Wet Bar: U-Line refrigerator/ice maker, hot/cold sink, dedicated storage, built-in DCS four-burner propane BBQ with expanded propane storage capacity for

extended cruising independence.

• Expansive Toy Storage: Purpose-built flybridge helm storage garage with port and starboard access, custom shelving, integrated LED lighting, and organized storage for life-safety equipment, water toys, and cruising essentials with starboard exterior storage areas providing secure, accessible stowage for paddleboards, kayaks, and water toys while maximizing usable deck space.

• Tender & Expedition Capability: 1,600-pound Brower davit system with powered lift, rotation capability/ dual side tender handline, and wireless remote control for effortless tender handling., custom-fabricated tender chocks and integrated deck mounting system, custom-auxiliary SS fuel storage rack for six 5-gallon containers, freshwater washdown for convenient deck maintenance and dedicated water-toy storage for effortless tender handling.

• Safety, Lighting & Convenience: Mounted hydrostatic-release 6-person life raft, stainless safety handrails, upgraded utility lighting, collapsible hardtop-access ladder with built-in storage, dual chart lockers, upper deck utility spread lighting for enhanced nighttime visibility and extensive Vimar 110VAC GFCI, USB-A/C outlets.

• Year-Round Climate Control: Dual Dometic Marine Air systems with redundant A/C plus upgraded diesel-fired hydronic heating for all-season comfort.

• Premium Entertainment System — Concealed fold-down 32" LED Smart TV

integrated into the overhead, complemented by a dedicated Fusion multi-zone

marine audio system with JL Audio speakers, subwoofer, and zone remote control,

delivering exceptional outdoor entertainment and concert-quality sound for the

entire deck.

Versatile Entertaining & Outdoor Living

Designed as both a welcoming social gathering space and a highly functional docking area, the aft deck seamlessly blends comfort, utility, and convenience. With direct salon access, dual docking stations, and integrated entertainment amenities, it serves equally well for waterside dining, hosting guests, or managing vessel operations.

• Custom made teak table with Holly & Rosewood Rose inlay with built-in refrigerator and (4) custom made Teak-Free standing chairs

• Large settee at transom with upgraded raised mildew-resistant cushion support system, creating an exceptional outdoor dining and relaxation environment.

• Salon Access - Stainless steel framed, ceramic-tinted sliding salon door providing a sleek contemporary profile, enhanced privacy, solar protection, and seamless transition between exterior and interior living spaces.

• Port and Starboard docking stations each with engine and thruster controls

• Premium Day Head & Guest Convenience Suite — Elegantly appointed day head featuring a Corian countertop and flooring, designer sink and faucet, custom cabinetry, illuminated mirror, LED lighting, climate-controlled comfort, and stainless steel Vimar 110VAC outlet, combining refined styling with exceptional functionality and guest convenience.

• Teak Deck & Flybridge Access — Custom molded stairway with elegant teak tread detailing provides safe and comfortable access to the flybridge, featuring a secure closing hatch at the upper landing for weather protection and enhanced privacy. Complemented by beautifully finished teak aft and side decks, creating a refined exterior environment with exceptional durability

• Versatile Side Boarding System — Port and starboard boarding doors with a, dedicated concealed storage cabinet for the removable boarding stairs, allowing deployment from either side of the yacht

• Premium Aft Deck Entertainment System — Concealed fold-down 27" LED Smart TV integrated into the overhead, complemented by a dedicated Fusion multi-zone marine audio system with JL Audio speakers, subwoofer, and zone remote control, delivering exceptional outdoor entertainment and concert-quality sound

• Custom Cockpit Sun Shade — Full-width removable vertical mesh sunshade for the aft seating area, engineered to significantly reduce heat and glare while allowing cooling airflow

• Storage cabinet/ bar with Corian top

• Integrated Exterior LED Lighting System — Blue LED perimeter courtesy lighting combined with multi-purpose overhead perimeter LED illumination, providing elegant ambient lighting, enhanced nighttime visibility, and improved safety throughout exterior living areas while creating a refined onboard atmosphere.

• Ceiling-mounted port and starboard aft corner cameras linked to the Garmin multifunction displays, providing enhanced 360-degree visibility and improved situational awareness during docking and close-quarter maneuvering.

Designed as both a welcoming social gathering space and a highly functional docking area, the aft deck seamlessly blends comfort, utility, and convenience. With direct salon access, dual docking stations, and integrated entertainment amenities, it serves equally well for waterside dining, hosting guests, or managing vessel operations.

FOREDECK, SIDE DECKS & TRANSOM - Outdoor Living with Purpose

SIDE DECKS & FOREDECK

Thoughtfully designed for safe passage and relaxed outdoor living, VIZCAYA's wide side decks, Portuguese bridge, and spacious foredeck offer the perfect balance of functionality and comfort.

• Comfortable recessed side decks to pilothouse doors

• Comfortable oval rails alongside decks

• Overhead LED lighting above teak side decks

• From pilothouse doors forward is a full wrap-around Portuguese bridge

• Blue LED courtesy lighting

• Ample Storage in inside of Portuguese bridge

• Over-sized hawse holes with tie down cleats

• Engine room air-plenums built to the inside of walkway bulwarks

• Ample storage below pilothouse windows

• Double opening gate to foredeck

• Dual-side fueling capability with port and starboard fuel inlets and vents integrated into the house sides, providing convenient, safe, and flexible fueling access regardless of dock configuration.

• Built-in seating on foredeck with cushions vented tiles to combat mold/mildew

• Maxwell windlass with dual anchors (one is an upgraded Ultra Anchor with swivel)

each with 300' of chain

• Shore power inlets: starboard side of PH - (2) 240/120V/50A, (1) 125V/30A

• Fresh and raw water washdown for anchor system

• Dual stainless-steel anchors with rollers, stanchions, cleats, chocks and oval hand rails

• Premium multi-zone audio system with two JL Audio speakers delivering exceptional outdoor sound quality with zone remote over Portuguese bridge and foredeck areas

• Dual-purpose stainless-steel rod holders installed port and starboard aft provide convenient fishing functionality while also serving as secure mooring whip mounts for side-tie docking of a tender or additional vessel while at anchor.

TRANSOM & SWIM PLATFORM – Your Waterfront Gateway

Designed as the gateway to life on the water, VIZCAYA's transom and swim platform create an exceptional space for swimming, diving, launching the tender, watersports, or simply relaxing at the water's edge.

• Molded fiberglass swim platform with integrated swim ladder

• Crew and engine room access via aircraft style safety door from transom

• Port and starboard molded teak stairways to the aft deck

• Four stainless-steel hoop-style safety rails

• Pop-up mooring cleats at swim platform corners

• Oversized stainless-steel docking cleats, port and starboard

• Dual Glendinning Cablemaster shore power systems with additional side-shore power connection and extension cable

• Freedom Lift hydraulic tender platform with wired and 2 wireless key fob remotes

• Five high-output underwater lighting fixtures strategically positioned with three transom-mounted lights and additional port and starboard aft lights

• Two utility/ security spreader lights

• Recessed shore power cable management tracks

• Hot and cold shower unit (Attwood) recessed behind FRP Door

• Freshwater and raw water washdown systems

• 12VDC Outlet in starboard storage cabinet

• Dockside freshwater connection

• Custom LED-illuminated boarding gates with secure latching system

• Aircraft-style watertight transom door providing direct access to the crew quarters and stand-up engine room

CUSTOM NAUTICA WIDEBODY RIB & TENDER PLATFORM

VIZCAYA's long-range capability gets you beyond conventional cruising territory. Her custom 12'6" Nautica Widebody RIB allows you to continue exploring once you arrive. Powered by a 60 HP Yamaha and equipped for serious day-to-day exploration and watersports, the RIB can transport owners and guests into shallow anchorages, onto beaches, between islands, to dive sites, and into areas the mothership simply cannot access.

Expedition-Ready Tender package includes:

• Removable 10" Garmin chart plotter

• Navigation, Yamaha performance and tankage monitoring

• Custom helm controls

• Premium seating

• Custom sunshade with multiple mount points

• Interior courtesy and underwater lighting

• Bluetooth audio & JL Audio speakers

• Multiple tender covers offering flexibility with full canvas cover or helm/seat only covers

• Custom tender chocks & Integrated deck mounting system

• 1,600-lb Brower powered davit with flexible stern and starboard side launching

• Transom, Hydraulic Freedom Lift with remote for convenience

• Wireless davit and Freedom Lift remote controls

• Auxiliary tender fuel storage for six 5-gallon containers

What further distinguishes VIZCAYA is the exceptional flexibility of her tender-handling system. The upper-deck 1,600-lb Brower powered davit can launch the Nautica either over the stern or from the starboard side, providing two launch and recovery options and a level of operational flexibility rarely found aboard a yacht of this size. In addition, the transom- mounted Freedom Lift hydraulic tender platform provides an independent, exceptionally convenient means of handling the tender when conditions and cruising plans favor a water-level launch.

Together, the upper-deck davit and transom Freedom Lift give VIZCAYA unusual freedom in how and where the tender is deployed—whether launching from the upper deck for maximum operational flexibility or using the transom lift for speed, convenience, and effortless access to the water.

VIZCAYA's spacious stand-up engine room provides exceptional access for inspection,

maintenance, and service with custom stainless-steel stanchion storage rack above the

engines, providing secure, organized, and out-of-the-way storage.

Main Engines

• Twin John Deere 13.5L Common-Rail Diesels: 750 HP each with electronic engine monitoring, upgraded full-range engine mounts, and approximately 3,002 hours.

• ZF Propulsion System: ZF transmissions with Glendinning electronic engine/transmission controls and four-station electronic engine & thruster controls.

• Advanced Steering & Drivetrain: SeaStar hydraulic power steering with multiple helm stations, five-blade 40" × 39" propellers, 3" Aquamet stainless-steel shafts, Spurs shaft-line cutters, and fin-stabilizer cutters.

Maneuvering & Stabilization

• Advanced Maneuvering & Stabilization: Wesmar DSP vessel control and stabilization system with independent helm/pilothouse interfaces for full operational redundancy, hydraulic bow/stern thrusters, and trim tabs.

• Premium Docking Control: Dockmate® wireless joystick system provides intuitive control of critical maneuvering functions for confident close-quarters handling and docking with minimal crew.

•  360° Situational Awareness: Integrated Garmin day/night camera system with four exterior cameras providing enhanced visibility around the vessel for safer, more precise maneuvering.

Fuel & Engine-Room Systems

•  Fuel Capacity & Management: Athwartships centerline fuel tanks with 1,750-gallon total capacity, 1½" cross-feed connections, and dual Racor fuel/water separators per engine.

•  Engine Room & Safety: Automatic fire-suppression system with air-plenum shutdown, portable extinguishers, organized engine-room storage, and integrated Reverso oil-change system for engines, transmissions, and generators.

•  Onboard Convenience: Nutone central vacuum system with multiple outlets throughout the yacht for effortless interior maintenance.

•  Underwater Exploration/ Diving Capability: Dedicated Max-Air electric dive compressor for convenient onboard scuba tank refills.

Advanced Hull & Underwater Protection

•  Exclusive Hampton Endurance Hybrid Hull — Hand-laid solid fiberglass construction incorporating Cymax® Kevlar reinforcement, with vinylester resin through the first five hull layers, two layers of Kevlar from chine to chine, and three layers of Kevlar in the forward collision zone for exceptional strength, impact resistance, and structural integrity.

•  High-Strength Composite Superstructure — Hand-laid fiberglass deck, deckhouse, and flybridge, cored with high-strength Divinycell® foam, supported by a robust longitudinal and transverse stringer system for stiffness, durability, and long-term structural integrity.

•  Purpose-Built Exterior Construction — Molded FRP rub rails capped with solid stainless-steel trim rails, combined with molded non-skid FRP decks, providing durable protection, secure footing, and a refined, purpose-built finish throughout.

•  Comprehensive Hull & Running Gear Protection — A recently renewed, multi-layer antifouling system—three coats on the hull with a fourth coat at the waterline—extends protection to the Freedom Lift, propellers, shafts, rudders, trim tabs, and associated underwater hardware, supporting efficient operation and reducing maintenance requirements.

•  Hull Shield Marine-Growth Protection — Hull Shield underwater protection applied across the hull, propellers, shafts, and rudders helps inhibit marine growth accumulation, maintain performance, extend clean-hull intervals, and reduce reliance on frequent diver cleaning during extended cruising.

•  Advanced Surface & Debris Protection — A recently applied ceramic coating enhances exterior protection while making the hull substantially easier to clean, while Spurs propeller-shaft line cutters and fin-stabilizer cutters provide added protection against ropes, nets, and floating debris—an important reliability advantage for extended blue-water passages.

Electrical Generation

• Redundant Power Generation: Northern Lights 20 kW and 12 kW generators, both with sound shields and multiple generator control panels.

• Advanced Shore Power: Dual Glendinning Cablemasters with 75' cords, dual Charles IsoBoost transformers, and multiple shore-power inlets including twin 250/125V 50A and additional 125V 30A connections.

• Robust Battery Capacity: AGM engine/generator batteries plus eight 200Ah house-bank batteries for dependable onboard power and extended cruising capability.

Victron Energy Architecture

VIZCAYA's house-power system has been developed around redundancy and efficient

energy management providing a fully integrated and redundant house power solution.

• Redundant Inverter/Charger Architecture: Victron MultiPlus-II 5 kVA primary and Magnum 4 kVA secondary inverter/chargers provide robust, redundant house-power capability.

• Engine-Driven Alternative Charging: Dual Victron Orion XS 12/24V 50A DC-DC chargers replenish the house bank directly from the main engines without generator operation.

• Advanced Energy Monitoring: Cerbo GX with GX Touch 50 and SmartShunt provide comprehensive onboard and remote monitoring of critical energy systems.

• Redundant Battery Charging: Dual 50A Mastervolt main-engine chargers plus dedicated 30A generator charger provide backup charging and dependable starting power for extended cruising.

Solar Generation

• Advanced Solar Power: Advanced renewable energy package featuring dual Renogy PERC 24V, 550-watt solar panels integrated with Victron MPPT charging technology, providing efficient solar generation, reduced generator run time, and enhanced electrical independence for true off-grid cruising.

• Enhanced Energy Independence: Solar generation reduces generator run time and fuel consumption, supporting extended cruising with reduced reliance on shore power.

Water Production

• Redundant Watermaker System: 60 GPH Bluewater primary and independent 40 GPH Sea-Water Pro secondary watermakers provide high-capacity, redundant freshwater production for extended off-grid cruising.

• Integrated Dual Water maker Filtration System: Space-efficient dual water maker pre-filtration system combining advanced media filtration and traditional cartridge filters into a single integrated manifold, simplifying maintenance while supporting both redundant water makers.

• Advanced Dockside Water Purification: Dometic 60 GPH dockside purification system with UV treatment delivers ultra-pure, spot-free freshwater providing spot-free washdowns that eliminate the need for hand drying, complemented by integrated dual-stage pre-filtration.

• Redundant Freshwater Distribution: Dual Headhunter freshwater pumps provide reliable pressure and system redundancy, while integrated filtration and UV purification ensure exceptional water quality.

• Hot Water & Comfort: Kuuma electric hot-water/heating system provides dependable onboard hot water.

Climate Control & Heating

• Redundant Climate Control: Dual Dometic Marine Air systems with dedicated climate control throughout the accommodations for reliable year-round comfort.

• Upgraded A/C Pump Redundancy: Dual seawater A/C pump failover system with dedicated manifolds and easy switching, providing backup support across all zones and decks.

• Efficient Electrical Management: Smart Start technology reduces electrical load during compressor startup.

• Cold-Weather Comfort: Diesel-fired hydronic heating provides dependable warmth throughout the yacht.

Waste & Bilge Protection

• Advanced Waste Management Options: USCG-approved Marine Sanitation Device (MSD) with onboard treatment prior to discharge, providing an environmentally responsible alternative to the built-in traditional pump-out system.

• Redundant Drainage & Bilge Protection: Upgraded master and VIP shower drainage with redundant overboard pumps, plus four automatic 2,000 GPH bilge pumps and engine-driven emergency bilge pumping.

• Multi-Layer Water Management: Multiple redundant emergency pumping systems provide enhanced protection and peace of mind throughout the vessel.

NAVIGATION & COMMUNICATIONS

VIZCAYA's electronics architecture is designed around both operational capability and redundancy.

Navigation

• Integrated Garmin Navigation Suite: GPSMAP 8215 and 8610 multifunction displays, GMI 20 instruments, GNX wind monitoring, dual GPS antennas, GHP 20 autopilot, and GMR 606 XHD radar.

• Advanced Sonar & Situational Awareness: Panoptix forward-scanning sonar, GSD 24 sounder, Airmar depth monitoring, FLIR thermal imaging, and AIS 600.

• Comprehensive Vessel Monitoring: Multiple exterior and engine-room cameras provide enhanced visibility, security, and situational awareness throughout the yacht.

Communications & Connectivity

• Advanced Communications: Dual Garmin VHF 215 radios, Starlink High Performance satellite internet, marine router, and cellular/Wi-Fi signal booster for reliable connectivity offshore.

• Satellite Entertainment: KVH stabilized satellite TV with DIRECTV tuners for premium entertainment underway.

• Global Connectivity & Tracking: Redundant Thales Iridium VSAT satellite communications plus Spot Trace asset tracking for enhanced connectivity, redundancy, and vessel security.

Remote Monitoring & Security

VIZCAYA can be monitored remotely for a wide range of critical conditions, including:

• Integrated Vessel Monitoring & Tracking: SPOT satellite tracking provides real-time vessel location, remote asset visibility, and enhanced security.

• Comprehensive Security System: Integrated Ring security and monitoring system featuring dual control stations, six exterior-grade cameras strategically positioned throughout the vessel, and water leak sensors in all critical wet areas, providing comprehensive onboard and remote monitoring capability for enhanced security and protection.

• Remote Systems & Alarm Monitoring: Continuous visibility of water intrusion, environmental conditions, battery status, electrical systems, energy production, refrigeration, and other critical onboard alarms.

The system includes Ring security cameras and water sensors, SPOT satellite tracking,

Victron Cerbo GX monitoring, and Ruuvi Bluetooth temperature/humidity sensors.

Entertainment

The yacht's integrated entertainment system is designed to deliver premium audio and

video throughout both interior and exterior living spaces.

• Premium 9,000W Entertainment System: Fusion Apollo multi-zone audio with wireless zone remotes, SiriusXM, six Fusion Signature Series 24V amplifiers, JL Audio exterior speakers, and Polk Audio interior speakers.

• Whole-Yacht Entertainment: JL Audio coverage throughout the flybridge, upper deck, foredeck, and aft deck, with Bose Lifestyle surround sound in the salon.

• Integrated Television: Exposed, flip-down and electric pop-up Smart TVs throughout the primary accommodations with KVH SAT/ DIRECTV and WiFi integration.
